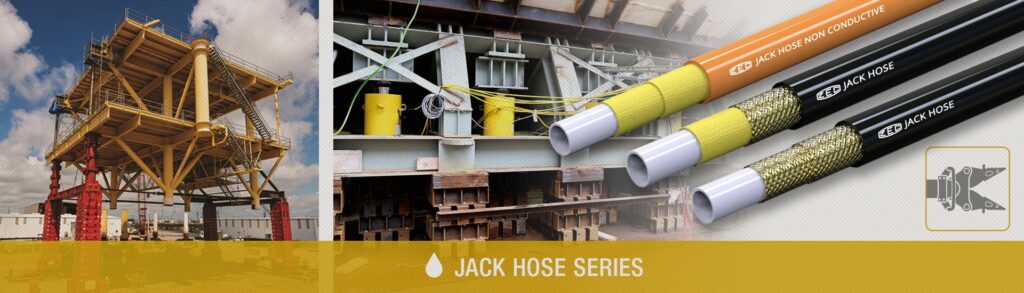

ZEC Jack Hose for highest pressure fluid power applications

ZEC Jack Hose Series is suitable for the high pressure conduction of hydraulic fluids and polyols on static and dynamic applications, generally construction, safety, mining fields, but also, marine and offshore applications. Main use is for 700bar / 10,000psi systems like:

• HP cylinders and lifting tools
• HP hand pumps
• Rescue tools
• HP tensioning systems and fasteners

Features and benefits of ZEC Jack Hose:

• Lightweight, compact, and low volumetric expansion solution
• PA12 inner core, for maximum fluid compatibility
• MSHA and anti-abrasion cover
• Available with SF 1:4 (Dynamic pressure) but also 1:2,5 and 1:2 for static applications
• Orange NC ANSI92.2 hose type available
• DNV Type Approved solution
• Twin solution available, under request bi-color too
• Proper carbon steel or AISI316 fittings solution designed and certified by ZEC

For further information, we invite you to download the ZEC Jack Hose Catalog here or contact IC-Fluid Power today!
