Smart Logger Pressure Gauge
Smart Logger Bluetooth digital pressure gauges incorporate a high precision pressure sensor with an accurate LCD display showing measured pressure in real time and can transmit readings up to 10 Hz via Bluetooth.

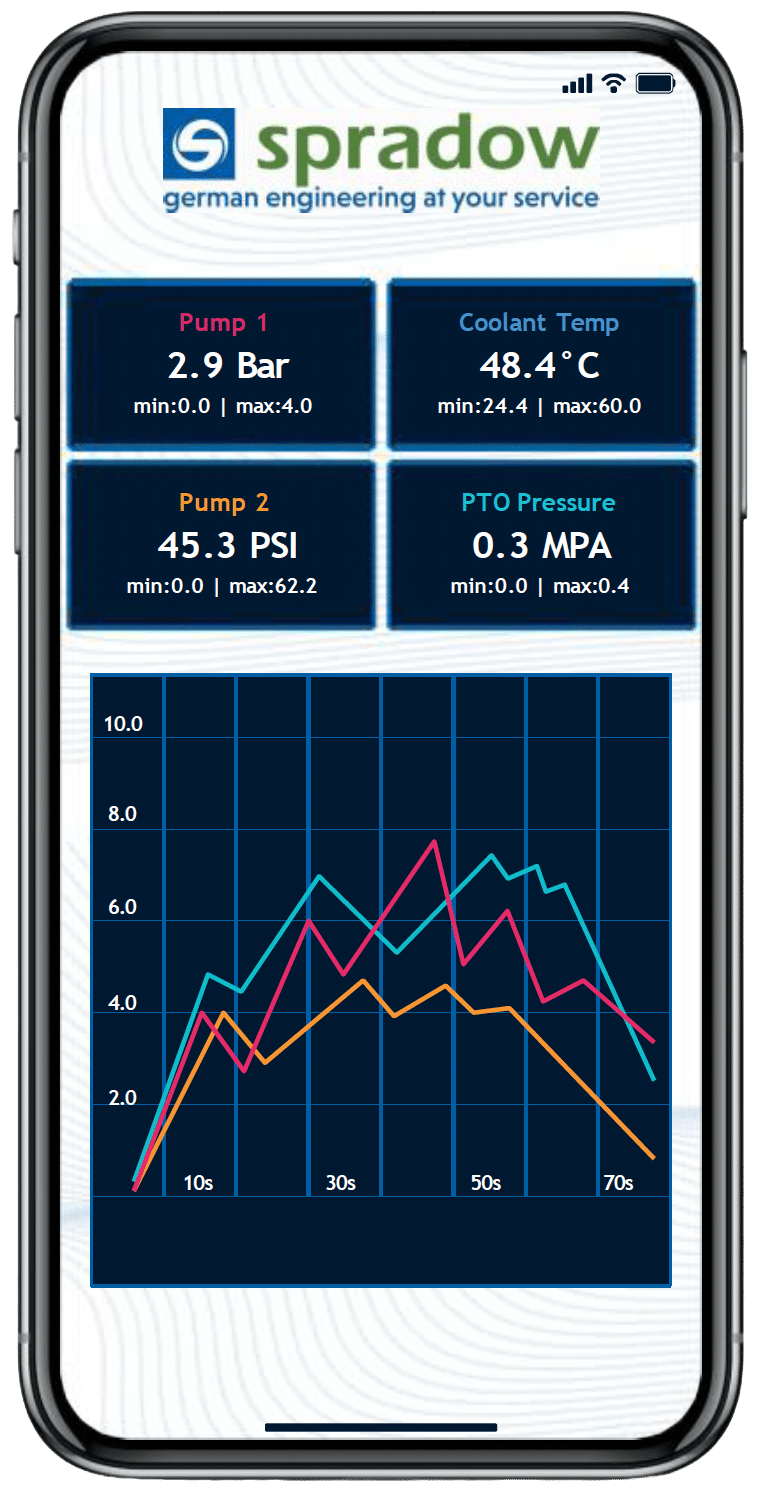

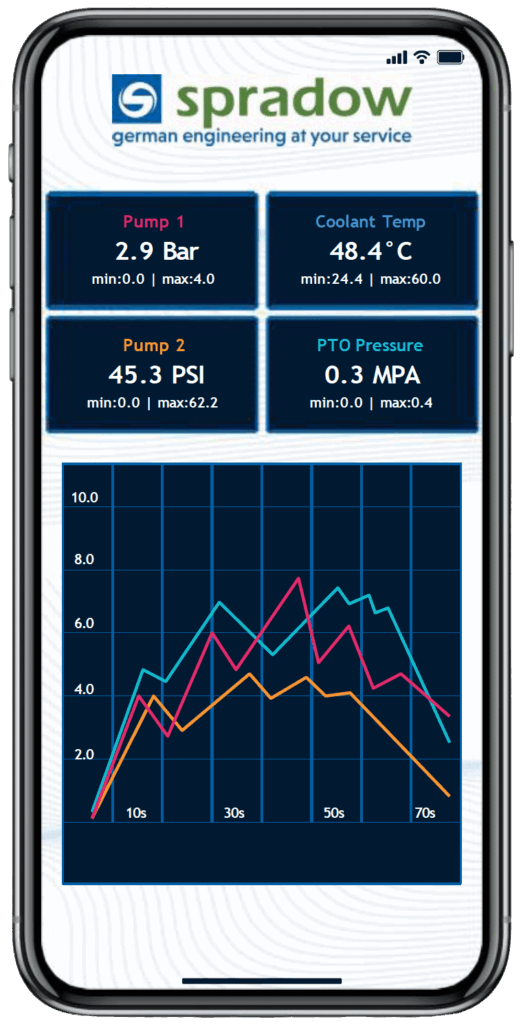

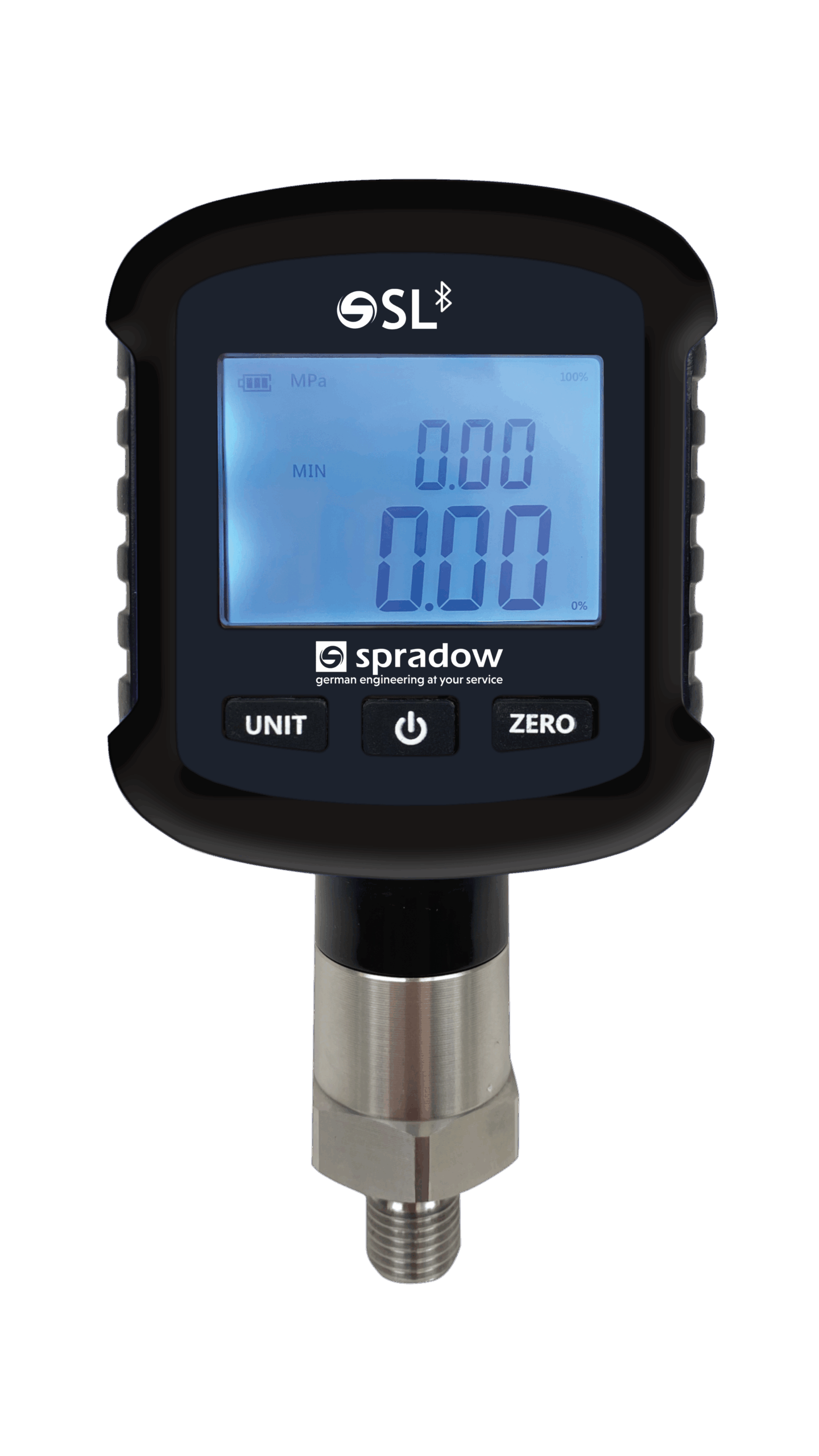

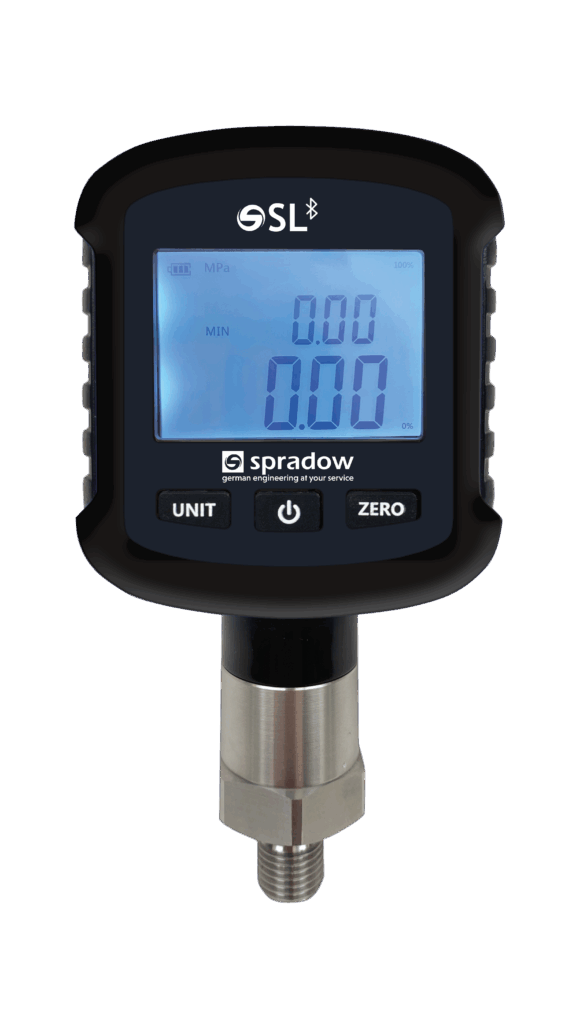

This digital pressure gauge is equipped with a large size LCD liquid crystal display, which has multiple functions such as zero reset, backlight, power on and off, pressure unit selection & low voltage alarms. Easy to operate and install, the display can be rotated 330° which is convenient for operators to read from different angles. The unit is supplied with a protective rubber shroud has good shock resistance and can measure gas, liquid, oil and other media that are not corrosive to stainless steel. This Smart Logger Bluetooth digital pressure gauge supports iOS and Android Bluetooth apps with configuration parameters that include display of pressure values, acquisition rate modification, zero reset operation and start/stop logging.
Smart Logger Bluetooth digital pressure gauges are suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields.
Advantages at a Glance:
Pressure Range Chart:
|
Pressure Ranges |
psi |
bar |
|
Negative/compound pressure |
Vacuum to 14 & 232 psi |
Vacuum to 1 & 16 bar |
|
Low pressure (on request) |
0…1.4, 5.8, & 8.7 psi |
0…0.1, 0.4, & 0.6 bar |
|
Medium pressure |
0…870, 2,320, & 3,625 psi |
0…60, 160, & 250 bar |
|
High pressure |
0…5,800, 10,150, & 14,500 psi |
0…400, 700, & 1,000 bar |
Technical Specifications:
|
Overload capacity |
up to 8,700 psi (600 bar) – 200% FS; 10,150 psi (700 bar) – 150%; 14,500 psi (1,000 bar) – 120% |
|
Backlight color |
White |
|
Dimensions |
143.5 x 75 x 40.5 mm |
|
Accuracy |
±0.2%FS |
|
Long-term stability |
Typical ±0.3%FS/year |
|
Operating temperature |
-20 – 65ºC |
|
Electrical protection |
Anti-electromagnetic interference design |
|
Measuring medium |
Oil, water, gas, and other stainless steel corrosion free medium |
|
Pressure connection |
G1/4″ BSP (alternative threads on request) |
|
Connection material |
Sensor body 304L, wetted parts 316L |
|
Shell material |
TPE+ABS |
|
Product features |
Turn on/off, backlight, clear, zero unit, switch extreme value, record, Bluetooth connection |
|
Power supply voltage |
3V (2x AA batteries) |
|
Power display |
Four sections display |
|
Dial |
Rotatable to 330 degrees |
|
Pressure unit |
MPa, bar, kgf, mH20, psi, kPa, mmHg, mBAR, mmH20, Pa, inWC |
|
Protection level |
IP54 |
Smart Logger Series Specifications
|
G |
Pressure Stage |
Part Number (NBR) |
Series |
|
G1/4-WD |
870 psi |
1-982-10-03-060 |
SL-60 |
|
G1/4-WD |
3625 psi |
1-982-10-03-120 |
SL-250 |
|
G1/4-WD |
10150 psi |
1-982-10-03-210 |
SL-700 |
|
G1/4-WD |
14500 psi |
1-982-10-03-150 |
SL-1000 |
Other dimensions on request. We reserve the right to change the technical performance. All dimensions in mm. ± 0.5 mm.
*G1/4″ WD Flat sealing, other threads available on request.
