Test Points and Test Hose Assemblies
Pressure is one of the most important diagnostic parameters in the hydraulic circuit. Obtaining pressure readings is essential to successful preventive maintenance and troubleshooting. The Spradow test points allow the connection of a pressure gauge in only seconds while the equipment is running. It is the safest, cleanest and most convenient way of measuring pressure. Designing your equipment with the Spradow test points will improve the quality of your equipment and in today’s market, higher quality makes the equipment more attractive to potential buyers. The spring loaded check valve inside the test point opens during engagement of the special micro-bore hose fitting end. The connection can be performed under pressure without the use of tools. A single gauge connected to the high pressure micro-bore hose can check an unlimited number of test points. We also offer various types of hose assemblies for direct connection to the test fitting.
Material Data:
|
Max working pressure |
9,135 psi (629 bar) |
|
Temperature range |
-40ºF to 322ºF (-40ºC to 161ºC) |
|
Threads |
M16 x 2 |
|
Metal material |
Carbon steel and zinc chromate (stainless steel available upon request) |
|
Seal options |
NBR, 90 durometer (others by request) |
|
ISO Standard |
DIN ISO 4042 |
|
Compatibility |
Interchangeable with other brands |
Hydraulic Test Point & Test Hose Variations

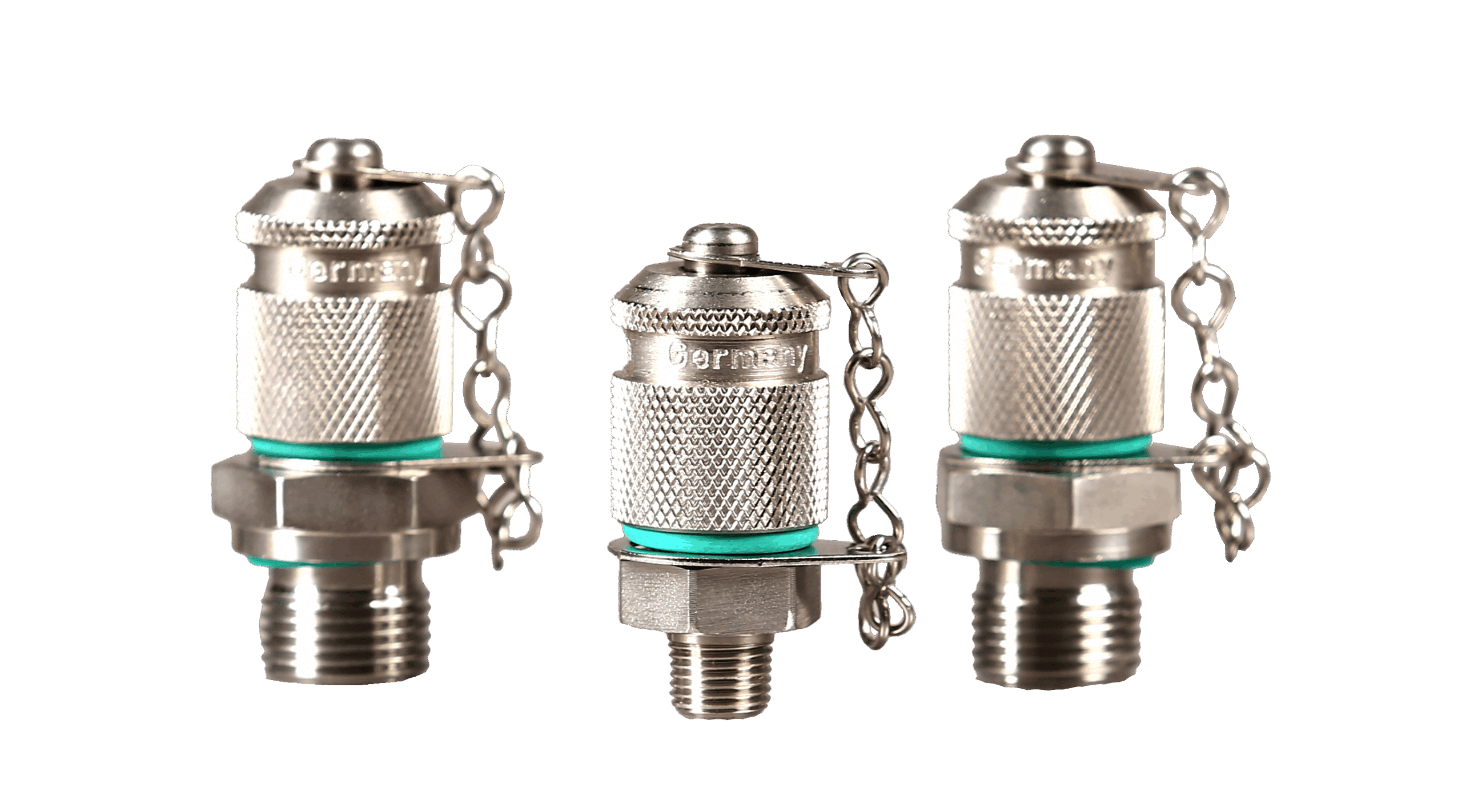

Test Points – M16x2, Zinc Nickel (Ball or Piston)
While their specifications may be the same, the internal mechanisms of piston and ball designs provide distinct advantages in different operating conditions. The ball valve is used for heavy-duty, rugged applications, while the piston valve is used for more precise, clean applications.
Test Points – M16x2, Stainless Steel (Piston)
Test Points – M16x2, For Inert Gases (Piston)
Test Hoses – M16x2
Spradow is a supplier and test point and test hose assembly manufacturer for various applications including construction, mechanical, technological, and industrial.
