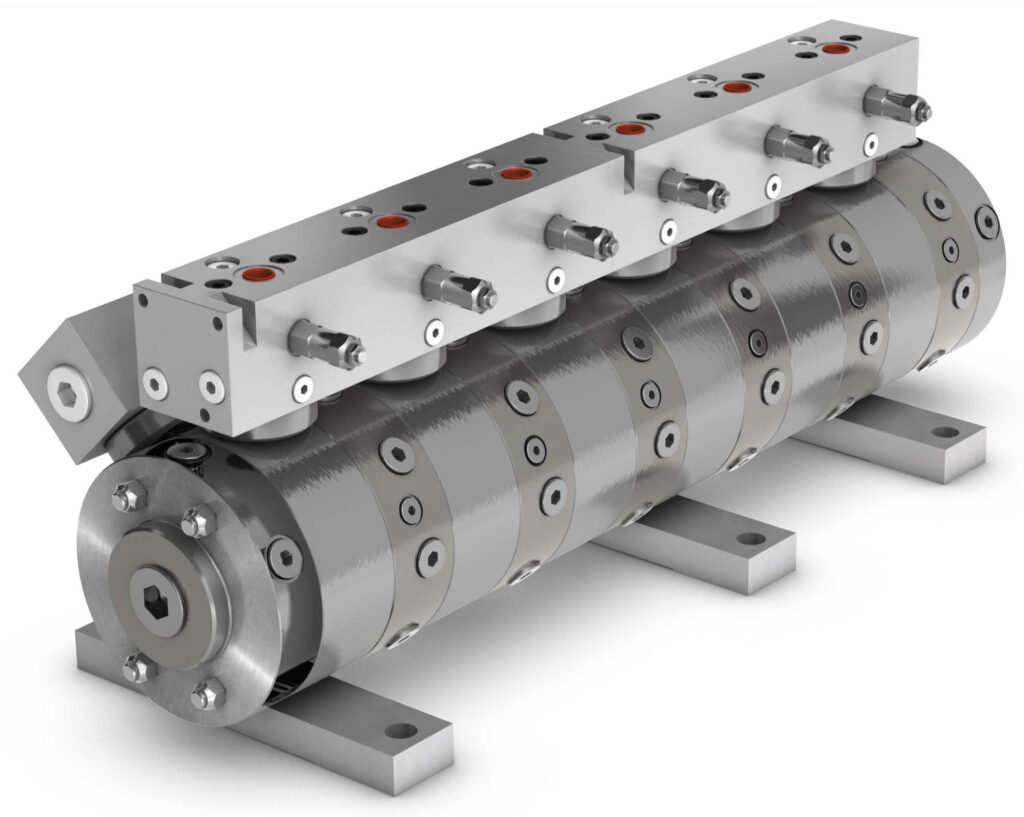

Radial Piston Flow Dividers

MTL:

2 to 12 section divider. Available in 3 sizes. Flow Rate: 7 gal/min. to 66 gal/min per section. Working Pressure: up to 3500 psi. Manifold block for end position damping, with pressure relief valve, pre-fill valve and test fittings for each section. Can be supplied with contact-free RPM counter.

The synchronization tolerances are The synchronization tolerances are ±0.5 to ±0.8%.

MT-GM:

2 section divider. Available in 5 sizes. Flow Rate: 1 gal/min. to 145 gal/min per section. Working Pressure: up to 3500 psi. Manifold block for end position damping, with pressure relief valve, pre-fill valve and test fittings for each section.

The synchronization tolerances are The synchronization tolerances are ±0.5 to ±0.8%.

STL:

2 to 12 section divider. Available in 2 sizes. Flow Rate: 14 gal/min. to 105 gal/min per section. Working Pressure: up to 3500 psi. Manifold block for end position damping, with pressure relief valve, pre-fill valve and test fittings for each section.

The synchronization tolerances are ±0.5 to ±0.8%.

Technical Data + Ordering Codes

Type	MTL../ 29	MTL../ 42	MTL../ 70	MTL../ 108	MTL../ 170	MTL../ 270
Displacement Per Section (in^3/rev) [cm^3/rev]	1.842 [30.2]	2.606 [42.7]	4.266 [69.9]	6.616 [108.4]	10.430 [170.9]	16.557 [271.4]
Continuous Flow Per Section (gpm) [lpm]	7.39 [28]	11.88 [45]	16.64 [63]	25.09 [95]	29.05 [110]	46.23 [175]
Max. Flow Per Section (gpm) [lpm]	10.56 [40]	17.17 [65]	23.77 [90]	35.66 [135]	42.26 [160]	66.04 [250]
Continuous Pressure (psi) [bar]	3480 [240]	3480 [240]	3480 [240]	3480 [240]	3480 [240]	3480 [240]
Peak Pressure (psi) [bar]	4350 [300]	4350 [300]	4350 [300]	4350 [300]	4350 [300]	4350 [300]
Max Power per Section (hp) [kW]	18.7 [14]	26.8 [20]	40 [30]	60 [45]	73 [55]	100 [75]

Ordering Code

MTL – 4/29 – EA

The above example shows a 4-section flow divider with all sections of 30.2 cm^3/rev and inlet and outlet block.

Number of sections

Nominal displacement of each section.
Actual displacement, see above chart.
View “type” for this section.

G	Threaded connection
E	Inlet block
A	Outlet block

Type	MT-GM1 100/100	MT-GM1 175/175	MT-GM2 350/350	MT-GM2 500/500	MT-GM3 800/800	MT-GM5 1800/1800	MT-GM5 3000/3000
Displacement Per Section (in^3/rev) [cm^3/rev]	6.041 [99]	10.495 [172]	21.162 [347]	30.083 [493]	48.319 [792]	110.761 [1816]	185.373 [3041]
Continuous Flow Per Section (gpm) [lpm]	9.24 [35]	18.49 [70]	31.70 [120]	38.30 [145]	62.08 [235]	89.81 [340]	113.59 [430]
Max. Flow Per Section (gpm) [lpm]	13.20 [50]	26.41 [100]	46.23 [175]	55.47 [210]	73.96 [280]	113.59 [430]	145.29 [550]
Continuous Pressure (psi) [bar]	3480 [240]	3480 [240]	3480 [240]	3480 [240]	3480 [240]	3480 [240]	3480 [240]
Peak Pressure (psi) [bar]	4350 [300]	4350 [300]	4350 [300]	4350 [300]	4350 [300]	4350 [300]	4350 [300]
Max Power per Section (hp) [kW]	32 [24]	40 [30]	60 [45]	60 [45]	80 [60]	120 [90]	160 [120]

Ordering Code

MT – GM1 – 100/100 – FEA

The above example shows a flow divider with all sections of 99 cm^3/rev, feet, and inlet and outlet block.

Size

Nominal displacement of each section.
Actual displacement, see above chart.
View “type” for this section.

G	Threaded connection
F	Feet, standard-supply without feet
EA	Inlet and outlet block

Type	STL..- 220	STL..- 320
Displacement Per Section (in^3/rev) [cm^3/rev]	30.145 [494.1]	44.087 [722.2]
Continuous Flow Per Section (gpm) [lpm]	58.11 [220]	84.53 [320]
Max. Flow Per Section (gpm) [lpm]	73.96 [280]	105.66 [400]
Continuous Pressure (psi) [bar]	3480 [240]	3480 [240]
Peak Pressure (psi) [bar]	4350 [300]	4350 [300]
Max Power per Section (hp) [kW]	134 [100]	167 [125]

Ordering Code

STL – 4 – 320 – EA

The above example shows a 4-section flow divider with all sections of 320 cm^3/rev, and inlet and outlet block.

Number of sections

Nominal displacement of each section.
Actual displacement, see above chart.
View “type” for this section.

S	Flange connection, SAE
E	Inlet block
A	Outlet block

Jahns is a supplier and flow divider manufacturer for various applications including construction, mechanical, marine, and industrial.
