Hydraulic Pressure Intensifiers – MPL Series

The MPL Series includes three models— MPL 1400, MPL 2000, and MPL 4000, all designed for continuous flow in high pressure applications.

Key Features of the MPL Series:

In-line reciprocating pressure intensifiers for uninterrupted flow
High pressure and flow applications

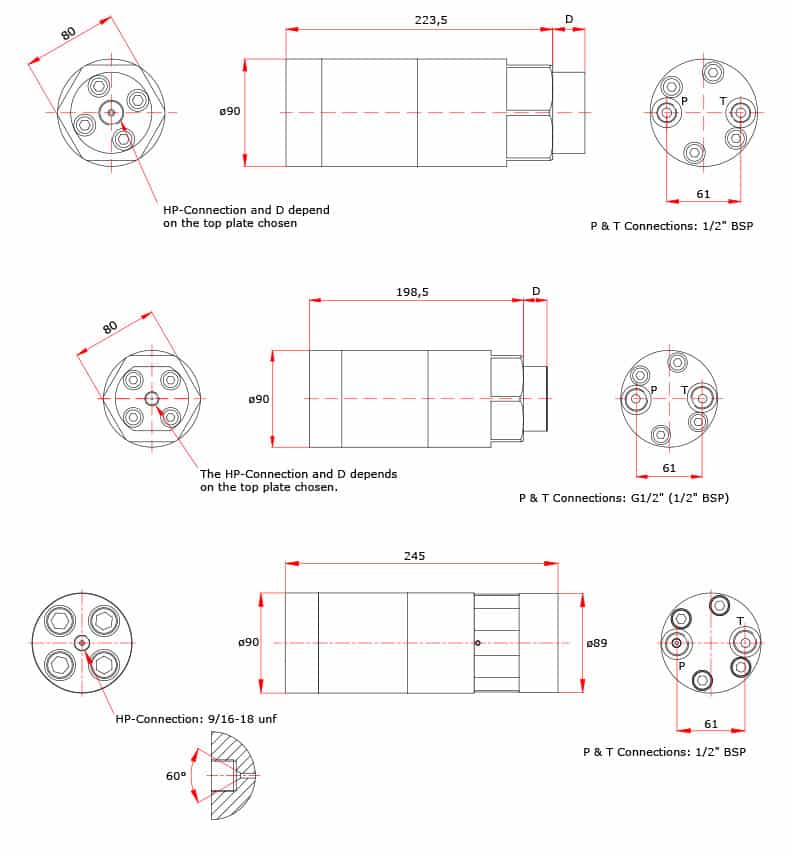

Optional top plates are available for high pressure connections

MPL Series Models:

High Pressure and Flow (MPL-1400): The MPL 1400 is ideal for high-flow, high-pressure operations. This intensifier has a flow rate up to 13.2 gpm (50 lpm) and output pressure up to 20,300 psi (1,400 bar).
Second Highest Pressure (MPL-2000): The MPL 2000 is designed for high-pressure power packs with an output pressure up to 40,600 psi (2,800 bar).
Highest Pressure (MPL-4000): The MPL 4000 is perfect for applications requiring maximum pressure performance. This model has the highest pressure in the series with pressure up to 58,000 psi (4,000 bar).

Technical Data:

Inlet Flow:

MPL-1400: up to 13.2 gpm (50 lpm)
MPL-2000 and MPL-4000: up to 7.9 gpm (30 lpm)

Supply pressure: 3,000 psi (200 bar)

End pressure rating: The end pressure is dependent on the ratio and is always proportional with the supplied pressure.

MPL-1400: 20,300 psi (1,400 bar)
MPL-2000: 40,600 psi (2,800 bar)
MPL-4000: 58,000 psi (4,000 bar)

Multiple intensification ratios
All high-pressure valves are integrated
Weight: 19.8 lbs (9 kg)

Intensification Ratio Charts:

MPL	Ratio	Max. Inlet flow	Max. Supply Pressure	Max. Output Pressure
	(i)	(GPM / LPM)	(psi / bar)	(psi / bar)
1400	7.0	15.8 / 60.0	2,900 / 200	20,300 / 1,400
2000	10.0	13.2 / 50.0	2,900 / 200	29,000 / 2,000
2000	14.0	13.2 / 50.0	2,900 / 200	40,600 / 2,800
4000	20.0	7.9 / 30.0	2,900 / 200	58,000 / 4,000

ScanWill is a supplier and pressure intensifier manufacturer for various applications including construction, mechanical, marine, and industrial.
