HYDRAULIC PRESSURE INTENSIFIERS – MP-2000 SERIES

Hydraulic Pressure Intensifiers – MP-2000 Series

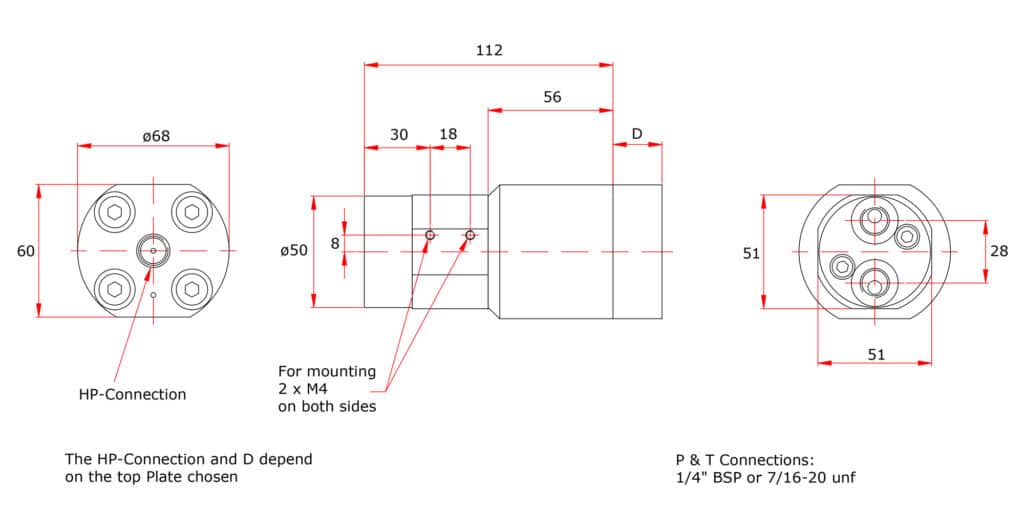

The MP-2000 is an in-line pressure intensifier designed to be positioned in a low-pressure hydraulic system and will provide higher pressure exactly where needed (max. 2.000 bar). Having all the required high-pressure valves incorporated, the need for additional high-pressure components is minimized ensuring a cost-effective system. Controlling the high-pressure side is achieved by valves on the low-pressure side through the intensifier adding to safety. The intensifiers are offered with 4 different intensification ratios to meet most intensification requirements. The compact design ensures easy installation in new as well as existing hydraulic circuits. The MP-2000 is offered with a pilot operated check valve (POV) integrated, which allows the high-pressure side to be relieved through the intensifier.

Key Features of the MP-2000:

  • In-line pressure intensifier, reciprocating type for continuous flow
  • Medium-high pressure and medium flow rate applications
  • Optional top plates are available for high pressure connections

MP-2000 Configurations:

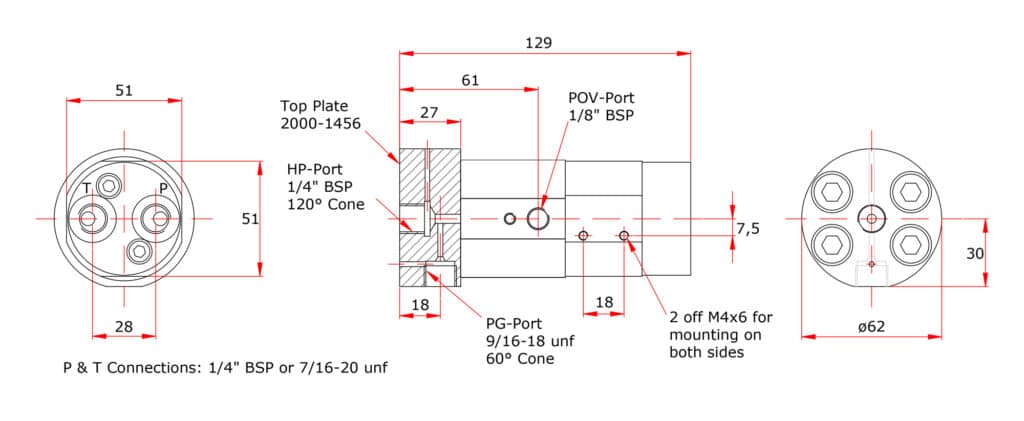

  • MP-2000-XP: The MP-2000-XP is made for installation in smaller power packs, where a higher end pressure is required, for example, a bolt tensioner. It is designed for smaller high-pressure power packs up to 2,600 bar/37,700 psi. This model also features an extra HP port for gauge mounting.

    When the XP-intensifier is connected to P and T, it will automatically increase the supplied pressure proportionally to the required end pressure. For evacuation of the high-pressure side, a pilot operated check valve is integrated, and when activated, the flow from the high-pressure side is led through a separate side port directly to tank, where it will be cooled and filtered before being pumped back in the hydraulic circuit.
  • MP-2100: The MP-2100 supports a higher maximum inlet flow up to 4 gpm (15 lpm) compared to the MP-2000’s 3.4 gpm (13 lpm), making it ideal for applications requiring greater flow efficiency.

Technical Data:

  • Inlet Flow:
  • MP-2000 and MP-2000-XP: up to 3.4 gpm (13 lpm)
  • MP-2100: up to 4 gpm (15 lpm)
  • Supply pressure: up to 2,900 psi (200 bar)
  • End pressure rating:
  • MP-2000: up to 43,500 psi (3,000 bar)
  • MP-2000-XP: up to 37,700 psi (2,600 bar)
  • MP-2100: up to 46,400 psi (3,200 bar).
  • Multiple intensification ratios
  • All high-pressure valves are integrated
  • Weight: 5.94 lbs (2.7 kg)

Intensification Ratio Charts:

RatioMin. Inlet FlowMax. Inlet flowOutlet Flow Q1Outlet Flow Q2Min. Inlet PressureMax. Supply PressureMax. Output Pressure
(i)(GPM / LPM)(GPM / LPM)(GPM / LPM)(GPM / LPM)(psi / bar)(psi / bar)(psi / bar)
1.81.9 / 76.6 / 251.32 / 50.39 / 1.5218 / 152,900 / 2005,220 / 360
3.41.9 / 79.3 / 3550.74 / 2.8218 / 152,900 / 2009,860 / 680
41.9 / 79.3 / 351.06 / 40.63 / 2.4218 / 152,900 / 20011,600 / 800
51.9 / 79.3 / 350.93 / 3.50.5 / 1.9218 / 152,030 / 16011,600 / 800
7. 01.9 / 79.3 / 350.8 / 30.34 / 1.3218 / 151,450 / 11411,600 / 800
RatioMin. Inlet FlowMax. Inlet flowOutlet Flow Q1Outlet Flow Q2Min. Inlet PressureMax. Supply PressureMax. Output Pressure
(i)(GPM / LPM)(GPM / LPM)(GPM / LPM)(GPM / LPM)(psi / bar)(psi / bar)(psi / bar)
7.00.5 / 23.4 / 130.29 / 1.10.05 / 0.2218 / 152,900 / 20020,300 / 1,400
10.00.5 / 23.4 / 130.18 / 0.070.05 / 0.2218 / 152,900 / 20029,000 / 2,000
13.00.5 / 23.4 / 130.13 / 0.050.02 / 0.1218 / 152,900 / 20037,700 / 2,600
RatioMax. Inlet FlowMax. Supply PressureMax. Output Pressure
(i)(GPM / LPM)(psi / bar)(psi / bar)
7.04.0 / 15.02,900 / 20020,300 / 1,400
10.04.0 / 15.02,900 / 20029,000 / 2,000
13.03.7 / 14.02,900 / 20037,700 / 2,600
16.03.2 / 12.02,900 / 18846,400 / 3,200

ScanWill is a supplier and pressure intensifier manufacturer for various applications including construction, mechanical, marine, and industrial.
