Hydraulic Servo Proportional Valve – P10 Pro

The P10 Pro is a high flow servo proportional valve engineered for demanding heavy duty applications. With strong dynamic stability and robust construction, it manages large volumes of hydraulic power with confidence, supporting presses, power and energy systems, and large-scale industrial automation. It is designed for environments where consistent control under higher loads is essential.

Available on NG10 port pattern as standard. S77 adaptors available.

Popular Upgrade Models:

  • Bosch Rexroth 4WRPEH 10
  • Woodward 27G50F
  • Atos DLHZ0
  • Moog D634

Key Stats:

  • Hysteresis: <0.2%
  • Leakage: <0.4 gpm (<1 lpm)
  • Shock Resistance: 50 g
  • Frequency Response: >65 Hz
  • Rated Flow: 10.6 to 42 gpm (40 to 160 lpm)
  • Flow Maximum: 66 gpm (250 lpm)
  • Response Time: <20 ms
  • Mounting Interface: ISO 4401-05-04

Key Features:

  • Onboard electronics with spool position feedback
  • Rated flow of up to 160 lpm at [1,015 psi (70 bar)]
  • Based on the NG10 port pattern
  • Bandwidth > 65 Hz (-3 dB, up to ± 25% FS)
  • Chip shear capability of >157 lbf (>700 N)
  • Valve mass of 8.8 lb (4 kg)

Standard Modification Options:

  • Rated flow rates of up to 42 gpm (160 lpm)
  • Multiple voltage or current control options
  • Various seal materials available
  • Non-standard configurations available

Technical Data:

DesignDirect Drive Servo Proportional Valve
ActuationRotary-Linear
SizeNG10
Mounting InterfaceISO 4401-05-04
Ambient TemperatureºC (ºF)-20 to +60 (-4 to +140)
Masskg (lb)4 (8.8)
Vibration Resistanceg30
Shock Resistanceg50
Max. Operating Pressure (P, A, B)Bar (psi)350 (5,000)
Max. Operating Pressure (T)Bar (psi)250 (3,600)
FluidHydraulic Oil DIN 51524
Fluid TemperatureºC (ºF)-20 to +80 (-5 to +175)
ViscositycSt5 to 500
Rated Flowl/min (US gal / min)40 to 160
(10.6 to 42)
Flow Maximuml/min (US gal / min)250 (66)
Pressure Gain% / %>40
Leakage at 100 barl/min (US gal / min)<1 (0.4)
FiltrationISO 4406 (1999) 18/16/13
Response Time at 100% Step Inputms<20
Frequency Response (-3dB gain, ±25% signal)Hz>65
Frequency Response (-90deg phase, ±25% signal)Hz>65
Hysteresis%<0.2
Threshold%<0.1
Null Shift%<1

View performance graphs for the P10 Pro Domin Servo Proportional Valve below including Step Response and Frequency Response:

  • Domin P10 Step Response Graph Chart for Domin Servo Proportional Valves, Graph and Figure
    P10 Pro Step Response Graph

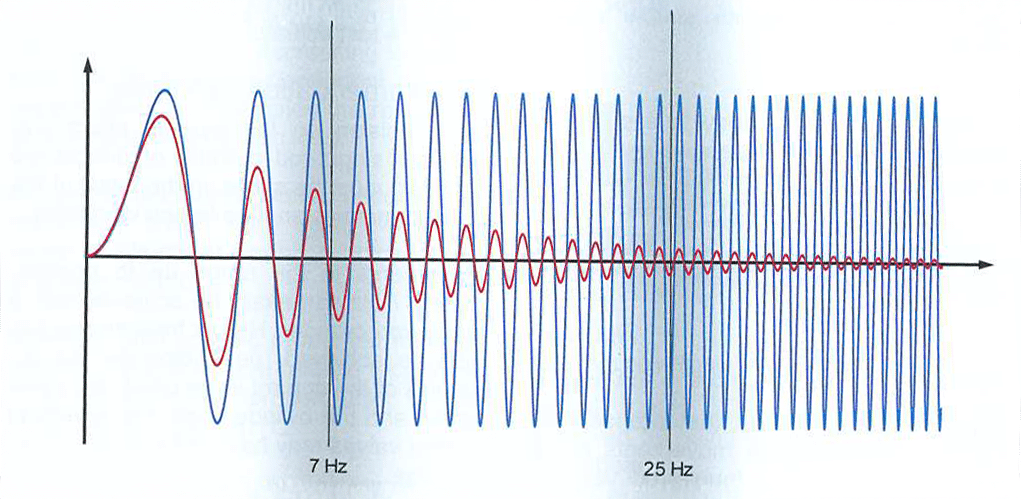

  • Domin P10 Frequency Response Graph Chart for Domin Servo Proportional Valves, Graph and Figure
    P10 Pro Frequency Response Graph

    • Ordering Code

    P10 Pro 1 2 3 4 5 6 7 8 9

    Any value in range 40 to 160

    Rate flow in l/min for 35 bar ∆P per control edge

    R – Suffix for reversal of A and B port e.g. 250R

    A

    Axis cut (1% overlap linearized)

    D

    Deadband

    F

    Float Center

    O

    Overlap

    X

    For other options please enquire

    A

    ± 10 V

    B

    ± 20 mA

    C

    4 to 20 mA

    D

    ± 5 V

    E

    ± 5 mA

    F

    ± 10 mA

    X

    For other options please enquire

    For differing input and output signals, use two letters,
    e.g. AC denotes ± 10V input and 4 to 20 mA output

    C

    Center

    X

    For other options please enquire

    E

    6 pin + PE circular connector *

    E4

    4 pin circular connector *

    X

    For other options please enquire

    * EN 175201-804/MIL 5015 equivalent connector, shell size 14

    Y

    Enable mode on

    N

    No enable functionality

    R

    Recommended – any hydraulic oil in accordance with DIN 51524, filtered in accordance with ISO4406 18/16/13. Compatibility with water-free synthetic fluids available on enquiry.

    X

    For other options please enquire

    N

    Nitrile (Shore 90)

    V

    Viton (Shore 85)

    X

    For other options please enquire

    Assigned individually to any with customized options upon enquiry

    Variants on Request

    Domin is proud of their ability to offer tailored solutions that meet customers’ specific needs. If you require a non-standard configuration, or a bespoke modification, we are confident we can provide you with the best solution. Talk to us here and one of our team members will respond as soon as possible.

    Domin is a supplier and servo valve manufacturer for various applications including blow/injection molding, wood/timber machines, metal processing, die casting, hydraulic presses, and vibration equipment.

    Related Products

    Home / Products / Hydraulic Servo Valves / Hydraulic Servo Proportional Valves – P6 Pro
    Request a Price Quote
    • Domin Overview
    • P6 Pro Data Sheet

    Hydraulic Servo Proportional Valve – P6 Pro

    The Domin P6 Pro is a compact servo proportional valve designed for precise control in smaller and mid-sized industrial systems. Its fast response and fine resolution make it well suited to machinery that depends on accurate motion management in a smaller footprint, such as injection moulding, ceramics, and automated handling systems. It installs easily into existing NG06 platforms and brings dependable day to day performance with minimal setup.

    Servo Proportional Valves Designed for Industrial Applications

    The P Series is designed for industrial and automation applications, such as injection molding equipment, ceramic presses, energy systems, and automated production lines. See how it compares to Domin’s original S Series in industrial applications:

    P Series – Proportional Valves

    S Series – Servo Valves

    • Accessible pricing for high-volume industrial applications
    • Designed for robust industrial manufacturing, molding, and automation
    • Applications for low to medium response rates (<10 ms for NGO6)
    • Higher cost due to premium performance needs
    • Designed for testing and dynamic applications
    • Applications for fast response rates (<3.5 ms for NGO6)

    Popular Upgrade Models:

    • Moog D633: 75% lighter
    • Bosch Rexroth 4WRPEH 6
    • Atos DLHZO
    • Woodward 27B50F

    Key Stats:

    • Hysteresis: <0.2%
    • Leakage: <0.13 gpm (<0.5 lpm)
    • Mass: 1.39 lbs (0.63 kg)
    • Rated Flow: 2.6-10.6 gpm (5-40 lpm)
    • Response Time: <10 ms

    Key Features:

    • Onboard electronics with spool position feedback
    • Rated flow of up to 10.6 gpm (40 lpm) (at 1,015 psi (70 bar))
    • Mounting interface of ISO 4401-03-02
    • Available on NG06/CETOP3 port pattern as standard
    • Bandwidth > 100 Hz (-3 dB, up to ± 25% FS)
    • Low power consumption of less than 5 W
    • Chip shear capability of greater than 89 lbf (400 N)
    • Low weight of less than 1.5 lbs (630 g)

    Standard Modification Options:

    • Choice of rated flow up to 10.6 gpm (40 lpm)
    • Multiple voltage or current control options
    • Various seal materials available
    • Non-standard configurations available

    Technical Data:

    DesignDirect Drive Servo Proportional Valve
    ActuationRotary-Linear
    SizeNG06
    Mounting InterfaceISO 4401-03-02
    Ambient TemperatureºC (ºF)-20 to +60 (-4 to +140)
    Masskg (lb)0.63 (1.39)
    Vibration Resistance, All Axesg30
    Shock Resistance, All Axesg50
    Max. Operating Pressure (P, A, B)Bar (psi)350 (5,000)
    Max. Operating Pressure (T)Bar (psi)250 (3,600)
    FluidHydraulic Oil DIN 51524-535
    Fluid TemperatureºC (ºF)-20 to +80 (-5 to +175)
    ViscositycSt5 to 500
    Rated Flowl/min (US gal / min)5 to 25 (2.6 to 6.6)
    25 to 40 (6.6 to 10.6)
    Flow Maximuml/min (US gal / min)56 (14.8)
    89 (23.5)
    Leakage at 100 barl/min (US gal / min)< 0.5 (0.13)
    Pressure Gain%/%> 40
    FiltrationISO 4406 (1999) 18/16/13
    Response Time at 100% Step Inputms<10
    Frequency Response (-3dB gain, ±25% signal)Hz>100
    Frequency Response (-90deg phase, ±25% signal)Hz>100
    Hysteresis%<0.2
    Threshold%<0.1
    Null Shift%<1

    View performance graphs for the P6 Pro Domin Servo Proportional Valve below including Step Response and Frequency Response:

  • Domin P6 Step Response Graph Chart for Domin Servo Proportional Valves, Graph and Figure
    Step Response Chart for the P6 Pro
  • Domin P6 Frequency Response Graph Chart for Domin Servo Proportional Valves, Graph and Figure
    Frequency Response Chart for the P6 Pro

    • Ordering Code

    P6 Pro 1 2 3 4 5 6 7 8 9

    Any value in range 5 to 40*

    Rate flow in l/min for 35 bar ∆P per control edge

    R – Suffix for reversal of A and B port e.g. 60R

    * Flow rating set in valve software – dynamic performance measured set at 60lpm flow.

    A

    Axis cut (1% overlap linearized)

    D

    Deadband

    F

    Float Center

    O

    Overlap

    X

    For other options please enquire

    A

    ± 10 V

    B

    ± 20 mA

    C

    4 to 20 mA

    D

    ± 5 V

    E

    ± 5 mA

    F

    ± 10 mA

    X

    For other options please enquire

    For differing input and output signals, use two letters,
    e.g. AC denotes ± 10V input and 4 to 20 mA output

    C

    Center

    X

    For other options please enquire

    E

    6 pin + PE

    E4

    4 pin

    X

    For other options please enquire

    Y

    Enable mode

    N

    No enable functionality

    R

    Recommended – any hydraulic oil in accordance with DIN 51524, filtered in accordance with ISO4406 18/16/13. Compatibility with water-free synthetic fluids available on enquiry.

    X

    For other options please enquire

    N

    Nitrile (Shore 90)

    V

    Viton (Shore 85)

    X

    For other options please enquire

    Assigned individually to any with customized options upon enquiry

    Variants on Request

    Domin is proud of their ability to offer tailored solutions that meet customers’ specific needs. If you require a non-standard configuration, or a bespoke modification, we are confident we can provide you with the best solution. Talk to us here and one of our team members will respond as soon as possible.

    Domin is a supplier and servo proportional valve manufacturer for various applications including die casting, injection molding, wood/timber machines, vibration equipment, metal processing, and simulation.

    Related Products

    Home / Products / Hydraulic Cylinders / Carbon Hybrid Hydraulic Cylinder
    Request a Price Quote
    • MARK LIGHT Carbon Hybrid Cylinders
    MARK LIGHT Carbon Hybrid Cylinder Logo

    Hydraulic Cylinders — Carbon Hybrid

    MARK carbon hybrid cylinders are the best of both worlds. Classic, high-strength metal (such as aluminum or steel) combined with lightweight, high-performance carbon fiber (CFRP).

    Advantages at a Glance:

    • Higher efficiency of the cylinder due to:
    • Shorter cycle times
    • Lower mass acceleration and deceleration
    • Fewer CO₂ emissions during operation for better sustainability efforts
    • Higher payload (more load capacity) due to weight savings
    • Preservation of tribological properties meaning less wear on components
    • Less mass, less energy required, lower fuel consumption
    • Corrosion resistant, as carbon is not susceptible to rust or chemicals

    What does carbon hybrid mean?

    Precision-manufactured components such as pistons, rod guides, and cylinder bases are made of aluminum or steel for maximum resilience and durability. The inner tube, or the liner, is made of extremely thin steel (for example, on a micro-cylinder, the liner is only 0.4 mm thick), ensuring optimum tightness and precise sealing clearance.

    The carbon hybrid comes from the fact that all cylinder parts are fully wrapped in carbon fiber. This carbon wrap is the only thing that connects the end pieces, such as the rod guide and cylinder base, and thus means optimal functioning of the cylinder. The carbon fiber is the structural connector, as opposed to welding, gluing or threading.

    Why carbon?

    • High strength: Extremely resistant to tension and compression, ideal for load-bearing structures
    • High rigidity: High modulus of elasticity, advantageous for dynamic loads
    • Low density: Significantly lighter than steel or aluminum, saves weight and energy
    • Corrosion resistance: Rust-free and resistant to many chemicals
    • Good damping behavior: Effectively reduces vibrations and oscillations
    • Fatigue resistance: Stable despite repeated loads, less material fatigue
    • X-ray transparency: Permeable to X-rays, ideal for medical technology & aviation
    • Customizable properties: Fiber orientation & resin matrix can be precisely matched to the application
    • Adjustable thermal expansion: Minimized thermal expansion for precise components

    Where Carbon Hybrid Cylinders make a difference

    Because our carbon fiber cylinders are up to 70% lighter than traditional steel cylinders, using these components reduces energy consumption leading to measurable cost savings over time.

    Below are some areas where our light-weight construction can really make a difference:

    Application

    Where carbon fiber makes a difference

    How it makes a difference

    Lifting platforms

    Load moment

    Reducing weight allows the platform to lift more or lift more safely, because the structure needs to support less self-weight

    Transportation

    Deadweight

    Reducing deadweight increases potential payload capacity, reduces fuel usage, and improves efficiency

    Agricultural technology

    Load moment, corrosion

    Lighter components improve load moments on AG machinery, and because carbon fiber does not corrode, these cylinders are strong in this environment where moisture, dirt, and chemicals are prevalent

    Maritime

    Weight, corrosion

    Lightweight components improve stability and efficiency, while corrosion resistance is critical due to saltwater environments

    Exoskeletons, tools

    Micro-cylinders

    Our small, lightweight micro-cylinders are optimal in wearable exoskeletons or handheld tools, where low weight is essential for ergonomics and mobility

    E-mobility

    Weight reduction

    In electric vehicles, every kilogram saved increases range and efficiency, making lightweight components highly valuable

    Rescue cylinders

    Weight

    Lightweight, powerful cylinders make rescue tools easier to handle for emergency responders, improving speed and safety during operations

    MARK LIGHT is a supplier and hydraulic cylinder manufacturer for various applications including maritime, agricultural, mobility, and transport.

    Related Products

    A Hunger Hydraulics Cylinder US Supplier & Distributor

    IC-Fluid Power, Inc. is a supplier, representative, and distributor of Hunger Hydraulics’ cylinders, providing North American customers with direct access to Hunger Hydraulics’ specialized, heavy-duty, custom cylinders, advanced coatings, and large-scale manufacturing capabilities. Our close relationship (as well as our close physical proximity) with Hunger means responsive communication for our customers right from the factory floor, which is especially valuable for complex or heavy-duty projects. As an experienced hydraulics distributor, IC-Fluid Power delivers European engineering quality to industrial applications throughout the United States.

    Hunger Hydraulics’ Background

    Founded in 1945 by Walter Hunger in Saxony, Germany, the Hunger Group has built a rich heritage of innovation in hydraulic engineering. In 1981, the Hunger Group established its US branch in Ohio. Located in Rossford, Hunger Hydraulics USA has provided engineered hydraulic solutions for more than 44 years. Hunger is a world leader in custom, heavy-duty hydraulic cylinders, precision machining, sealing technology, and integrated hydraulic systems.

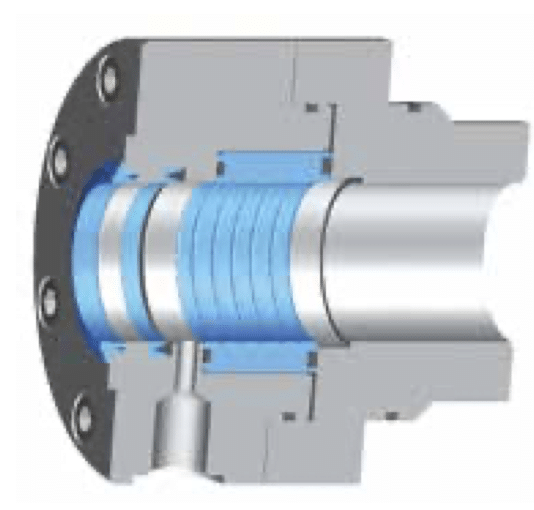

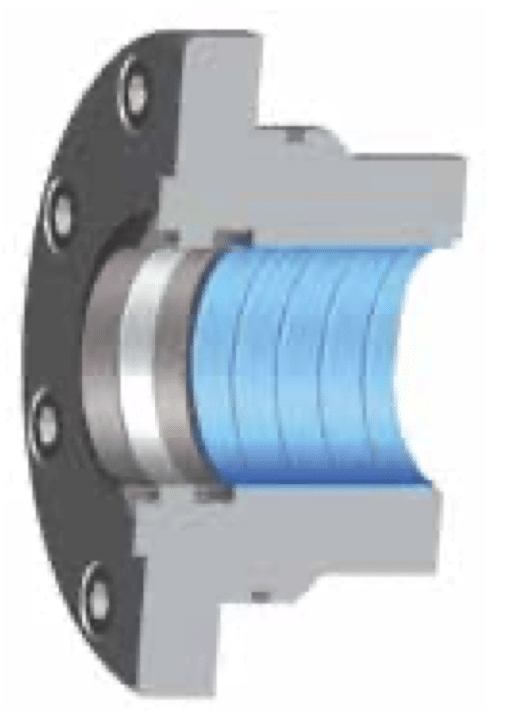

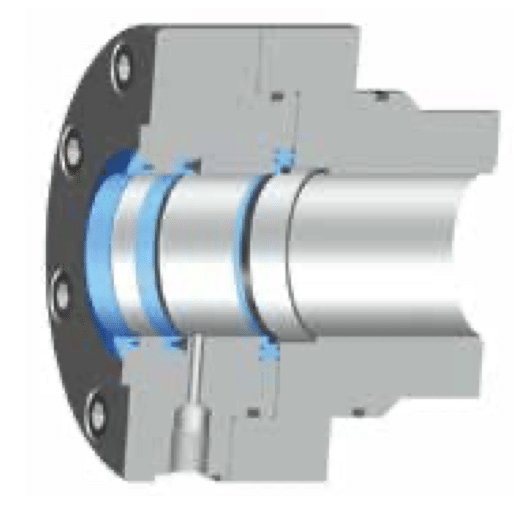

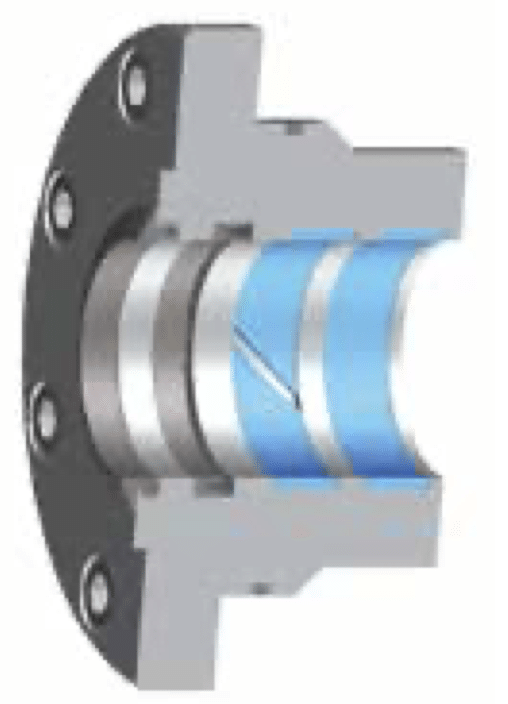

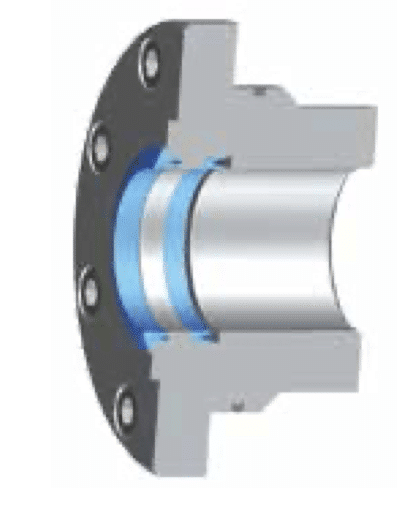

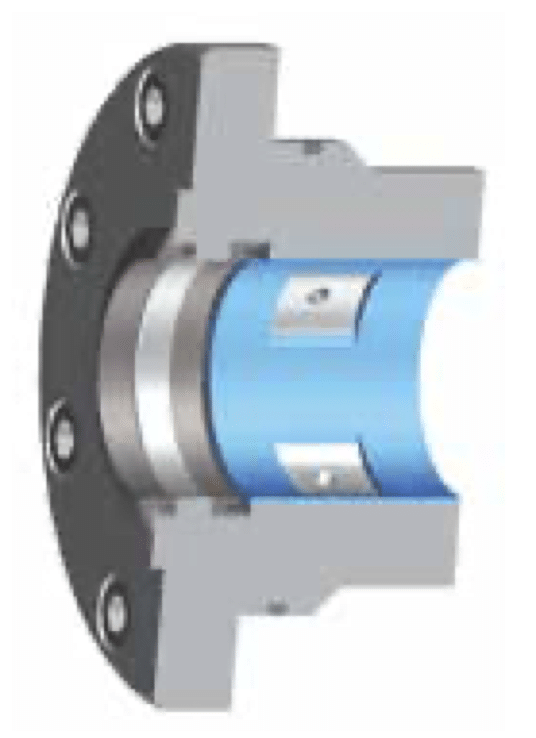

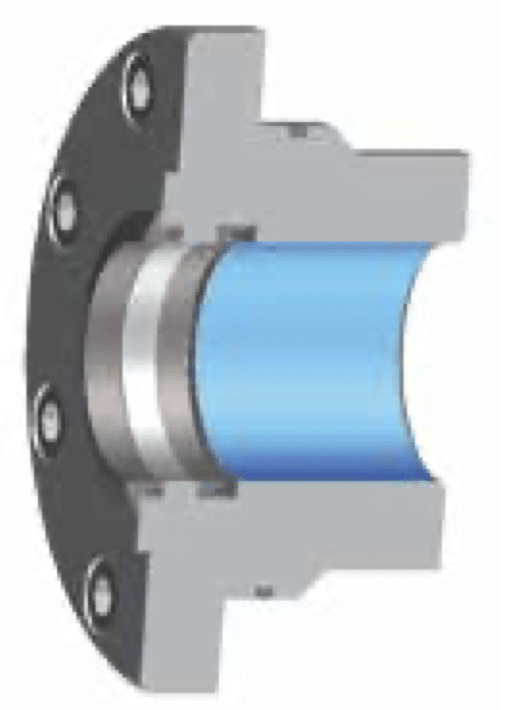

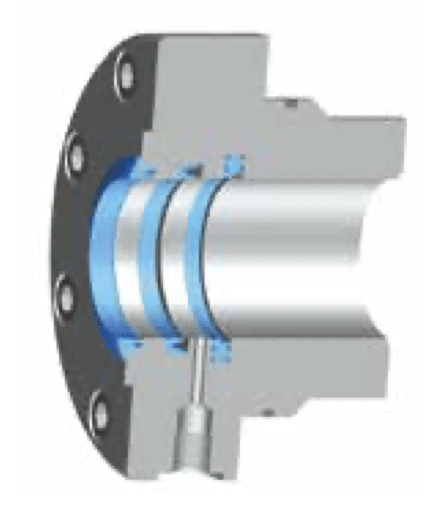

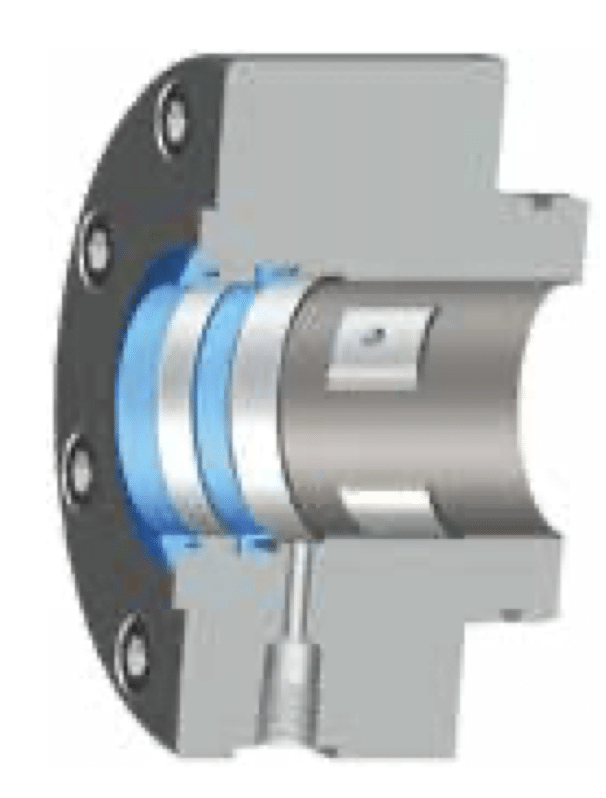

    Hunger’s Hydraulic Cylinders

    The Hunger Group is known worldwide for producing high-performance hydraulic cylinders built for demanding industrial environments. Their product range includes custom engineered cylinders, large-scale heavy-duty designs, advanced coatings, and low-friction sealing systems that support long service life even in harsh conditions. Hunger cylinders are used in subsea, offshore, mining, steel production, and other applications that require precision, durability, and reliable motion control.

    Need Support? We Can Help.

    Contact a specialist
    Home / Products / Flow Dividers / Hydraulic Flow Divider Valve
    Request a Price Quote
    • Jahns Company Overview
    • Jahns Flow Dividers

    Hydraulic Flow Divider Valve

    When precision is secondary to affordability, flow divider valves can be used. These two-section dividers are designed for compact applications with synchronization errors between ±4 to 5%.

    These divider valves are bidirectional, capable of both dividing and combining flow. The flow division is largely unaffected by the viscosity of the fluid being used or changes in pressure.

    Two models are available, both with identical flow capacity. The difference lies in their housing material and pressure ratings.

    MKA

    2 section divider. Flow Rate: 0.53 to 39 gpm (2 to 150 lpm). Lightweight aluminum body. Peak operating pressure of 3,045 psi (210 bar).

    MKS

    2 section divider. Flow Rate: 0.53 to 39 gpm (2 to 150 lpm). Steel body. Peak operating pressure of 5,075 psi (350 bar).

    Technical Data Table

    Type

    Min. Total Flow
    (gpm) [lpm]

    Max. Total Flow
    (gpm) [lpm]

    Peak Pressure
    (psi) [bar]

    MKA-1/12

    1.05
    [4]

    3.17
    [12]

    3045
    [210]

    MKA-1/24

    3.17
    [12]

    6.34
    [24]

    3045
    [210]

    MKA-1/40

    6.34
    [24]

    10.56
    [40]

    3045
    [210]

    MKA-2/90

    10.56
    [40]

    23.77
    [90]

    3045
    [210]

    MKA-2/150

    23.77
    [90]

    39.62
    [150]

    3045
    [210]

    Type

    Min. Total Flow
    (gpm) [lpm]

    Max. Total Flow
    (gpm) [lpm]

    Peak Pressure
    (psi) [bar]

    MKS-0/6

    0.52
    [2]

    1.05
    [4]

    4565
    [315]

    MKS-1/12

    1.05
    [4]

    3.17
    [12]

    5075
    [350]

    MKS-1/24

    3.17
    [12]

    6.34
    [24]

    5075
    [350]

    MKS-1/40

    6.34
    [24]

    10.56
    [40]

    5075
    [350]

    MKS-2/90

    10.56
    [40]

    23.77
    [90]

    5075
    [350]

    MKS-2/150

    23.77
    [90]

    39.62
    [150]

    5075
    [350]

    Related Products

    TEST POINTS AND TEST HOSE ASSEMBLIES SPECS

    Home / Products / Test Points & Hoses / Test Points & Test Hose Specs
    Request a Price Quote
    • IC-Fluid Power Test Point and Test Hose

    Test Points and Test Hose Assemblies

    Pressure is one of the most important diagnostic parameters in the hydraulic circuit.  Obtaining pressure readings is essential to successful preventive maintenance and troubleshooting. The Spradow test points allow the connection of a pressure gauge in only seconds while the equipment is running. It is the safest, cleanest and most convenient way of measuring pressure. Designing your equipment with the Spradow test points will improve the quality of your equipment and in today’s market, higher quality makes the equipment more attractive to potential buyers. The spring loaded check valve inside the test point opens during engagement of the special micro-bore hose fitting end. The connection can be performed under pressure without the use of tools. A single gauge connected to the high pressure micro-bore hose can check an unlimited number of test points. We also offer various types of hose assemblies for direct connection to the test fitting.

    Material Data:

    Max working pressure

    9,135 psi (629 bar)

    Temperature range

    -4ºF to 322ºF (-15ºC to 161ºC)

    Threads

    M16 x 2

    Metal material

    Carbon steel and zinc chromate (stainless steel available upon request)

    Seal options

    NBR, 90 durometer (others by request)

    ISO Standard

    DIN ISO 4042

    Compatibility

    Interchangeable with other brands

    Spradow is a supplier and test point and test hose assembly manufacturer for various applications including construction, mechanical, technological, and industrial.

    Related Products

    Home / Products / Test Points & Hoses / Smart Logger Pressure Gauge
    Request a Price Quote
    • Spradow Smart Logger Information Sheet
    spradow logo

    Smart Logger Pressure Gauge

    Smart Logger Bluetooth digital pressure gauges incorporate a high precision pressure sensor with an accurate LCD display showing measured pressure in real time and can transmit readings up to 10 Hz via Bluetooth.

    This digital pressure gauge is equipped with a large size LCD liquid crystal display, which has multiple functions such as zero reset, backlight, power on and off, pressure unit selection & low voltage alarms. Easy to operate and install, the display can be rotated 330° which is convenient for operators to read from different angles. The unit is supplied with a protective rubber shroud has good shock resistance and can measure gas, liquid, oil and other media that are not corrosive to stainless steel. This Smart Logger Bluetooth digital pressure gauge supports iOS and Android Bluetooth apps with configuration parameters that include display of pressure values, acquisition rate modification, zero reset operation and start/stop logging.

    Smart Logger Bluetooth digital pressure gauges are suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields.

    Advantages at a Glance:

    • Dial can be rotated 330º
    • Easy operation
    • Multiple selectable pressure units
    • Zero reset and backlight
    • Bluetooth connection to iOS and Android apps with datalogging
    • Low power consumption design, 2x AA batteries
    • 12 months of battery life
    • Ergonomic & robust design, with rubber shroud and easy operation

    Pressure Range Chart:

    Pressure Ranges

    psi

    bar

    Negative/compound pressure

    Vacuum to 14 & 232 psi

    Vacuum to 1 & 16 bar

    Low pressure (on request)

    0…1.4, 5.8, & 8.7 psi

    0…0.1, 0.4, & 0.6 bar

    Medium pressure

    0…870, 2,320, & 3,625 psi

    0…60, 160, & 250 bar

    High pressure

    0…5,800, 10,150, & 14,500 psi

    0…400, 700, & 1,000 bar

    Technical Specifications:

    Overload capacity

    up to 8,700 psi (600 bar) – 200% FS; 10,150 psi (700 bar) – 150%; 14,500 psi (1,000 bar) – 120%

    Backlight color

    White

    Dimensions

    143.5 x 75 x 40.5 mm

    Accuracy

    ±0.2%FS

    Long-term stability

    Typical ±0.3%FS/year

    Operating temperature

    -20 – 65ºC

    Electrical protection

    Anti-electromagnetic interference design

    Measuring medium

    Oil, water, gas, and other stainless steel corrosion free medium

    Pressure connection

    G1/4″ BSP (alternative threads on request)

    Connection material

    Sensor body 304L, wetted parts 316L

    Shell material

    TPE+ABS

    Product features

    Turn on/off, backlight, clear, zero unit, switch extreme value, record, Bluetooth connection

    Power supply voltage

    3V (2x AA batteries)

    Power display

    Four sections display

    Dial

    Rotatable to 330 degrees

    Pressure unit

    MPa, bar, kgf, mH20, psi, kPa, mmHg, mBAR, mmH20, Pa, inWC

    Protection level

    IP54

    Smart Logger Series Specifications

    G

    Pressure Stage

    Part Number (NBR)

    Series

    G1/4-WD

    870 psi
    (60 bar)

    1-982-10-03-060

    SL-60

    G1/4-WD

    3625 psi
    (250 bar)

    1-982-10-03-120

    SL-250

    G1/4-WD

    10150 psi
    (700 bar)

    1-982-10-03-210

    SL-700

    G1/4-WD

    14500 psi
    (1000 bar)

    1-982-10-03-150

    SL-1000

    Other dimensions on request. We reserve the right to change the technical performance. All dimensions in mm. ± 0.5 mm.

    *G1/4″ WD Flat sealing, other threads available on request.

    Spradow is a supplier and test point and test hose assembly manufacturer for various applications including construction, mechanical, technological, and industrial.

    Related Products

    Home / Products / Hydraulic Servo Valves / Hydraulic Servo Valves – S12 Pro
    Request a Price Quote
    • Domin Overview
    • S12 Pro Data Sheet

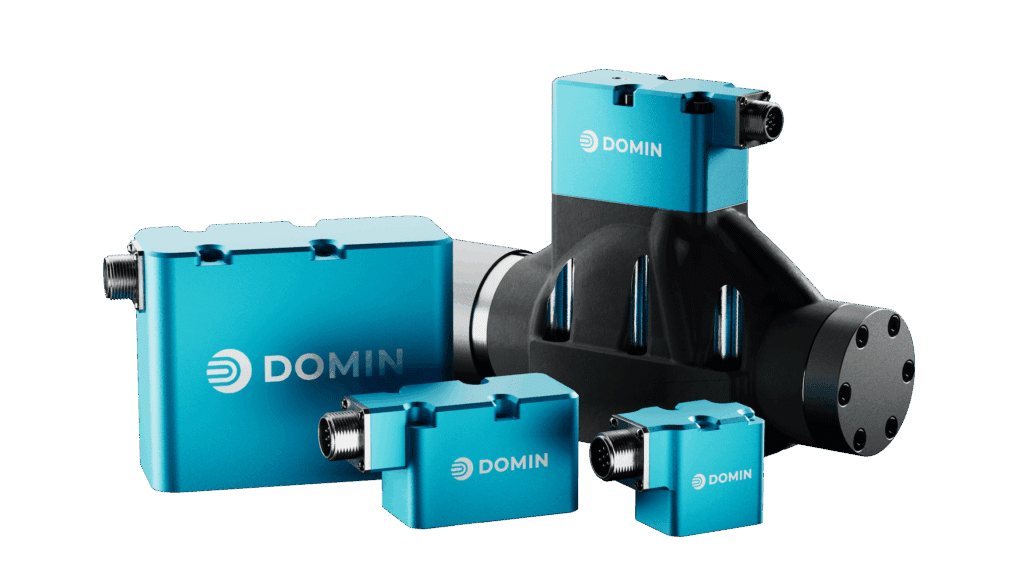

    Hydraulic Servo Valves – S12 Pro

    Compact Power. Proven Reliability.

    The Domin S12 Pro is the next evolution in high-performance, high-flow hydraulic valves. It builds on the proven reliability of the S6 Pro, which is now used as the first stage for the most advanced two-stage valve in the world.

    The S12 Pro delivers unmatched performance with the same trusted dependability. Combining high flow, excellent dynamics, proven reliability, and low power consumption, the S12 Pro sets a new benchmark in demanding applications.

    With dimensions of 13.25 in (377 mm) in length and 6.9 in (177 mm) in height, the S12 Pro is thoughtfully designed with all components fully enclosed, eliminating exposed wires or sensors. This user-focused design element ensures not only a clean, sleek appearance, but also easier handling and installation.

    This combination of performance and compact design makes the S12 Pro ideal for applications in industrial manufacturing, test simulation, and the energy sector.

    Popular Upgrade Models:

    • Bosch Rexroth 4WRLE 16
    • Moog D662
    • Parker D41FP
    • Atos DPZO-2

    Key Stats:

    • Frequency Response: >100 Hz
    • Rated Flow: 66-174 gpm (250-660 lpm)
    • Response Time: <9 ms

    Key Features:

    • Onboard electronics with spool position feedback
    • Rated flow of up to 250 lpm (66 gpm)
    • Based on the NG16 port pattern
    • Bandwidth > 70 Hz (-3 dB, up to ± 25% FS)
    • Low power consumption of less than 5 W

    Standard Modification Options:

    • Choice of rated flows up to 250 l/min (66 gpm) 10 Bar △P
    • Multiple voltage or current control options
    • Various seal materials available
    • Non-standard configurations available

    Technical Data:

    DesignTwo-Staged Servo Valve
    ActuationDirect Drive Pilot
    SizeNG16
    Mounting InterfaceISO 4401-07-07
    Ambient TemperatureºC (ºF)-20 to +60
    (-4 to +140)
    Masskg (lb)9 (20)
    Max. Operating Pressure (P, A, B)Bar (psi)350 (5,000)
    Max. Operating Pressure (T)Bar (psi)250 (3,600)
    FluidHydraulic Oil DIN 51524-535
    Fluid TemperatureºC (ºF)-20 to +80
    (-5 to +175)
    ViscositycSt5 to 500
    Rated Flow (5 Bar △P per edge)l/min (US gal / min)250 (66)
    Rated Flow (35 Bar △P per edge)l/min (US gal / min)660 (174)
    Pilot Leakagel/min (US gal / min)<0.3 (0.08)
    Main Stage Leakagel/min (US gal / min)<2.7 (0.7)
    FiltrationISO 4406 (1999) 18/16/13
    Response Time at 100% Step Inputms<10
    Frequency Response (-3dB gain, ±25% signal)Hz>70
    Frequency Response (-90deg phase, ±25% signal)Hz>100
    Hysteresis%<0.2
    Threshold%<0.1
    Null Shift%<1

    View performance graphs for the S12 Pro Domin Servo Valve below including Step Response, Flow vs Command, Frequency Response, and Pressure Gain:

  • Domin Servo Valve Direct Drive Valve S12Pro Step Response Graph Chart
    Step Response
  • Domin Servo Valve Direct Drive Valve S12Pro Flow vs Command Graph Chart
    Flow vs Command
  • Domin Servo Valve Direct Drive Valve S12Pro Frequency Response Graph Chart
    Frequency Reponse
  • Domin Servo Valve Direct Drive Valve S12Pro Pressure Gain Graph Chart
    Pressure Gain

    • Normal Operating Conditions

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    22

    24

    30

    Absolute maximum current draws

    A

    –

    –

    4.5

    Normal Operating Conditions*

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    -10

    –

    10

    Output Signal**

    V

    -10

    –

    10

    * Operation of the product outside of the nominal operation conditions is not guaranteed and may affect product reliability.

    ** The valve supply must be protected with a 5 AT fuse or equivalent overcurrent protection device.

    Normal Operating Conditions

    Min.

    Typ.

    Max.

    Supply Voltage

    mA

    20

    –

    20

    Output Signal

    mA

    20

    –

    20

    Normal Operating Conditions

    Min.

    Typ.

    Max.

    Differential Input Signal

    mA

    4

    –

    20

    Differential Input Signal for drive off

    mA

    -20

    –

    2

    Type: Case Mounted
    Termination: Connector according to EN 175201-804/MIL 5015 equivalent, shell size 14
    Number of Contacts: 7

    Pin

    Function

    Desc.

    A

    Supply +

    +24 V

    B

    Supply 0 V

    0 V

    C

    Output –
    Enable Input

    Output 0 V Reference
    Drive Enable Input*

    D

    Input +

    Differential Input, +

    E

    Input –

    Differential Input, –

    F

    Output +

    Output Signal

    G

    Earth

    –

    * When the enable function is selected, the function of pin C is the enable input. This replaces the standard pin function.

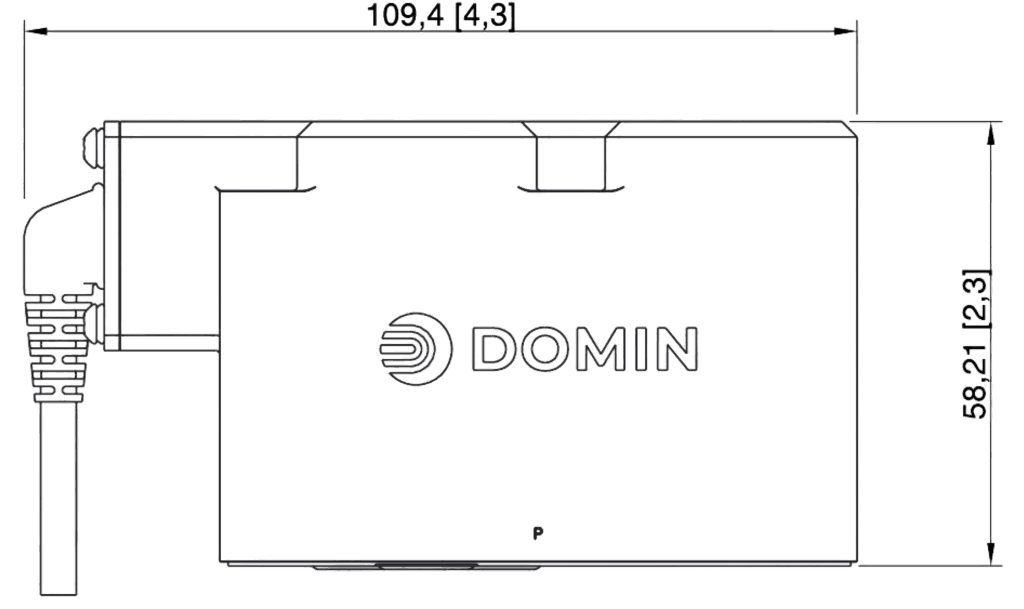

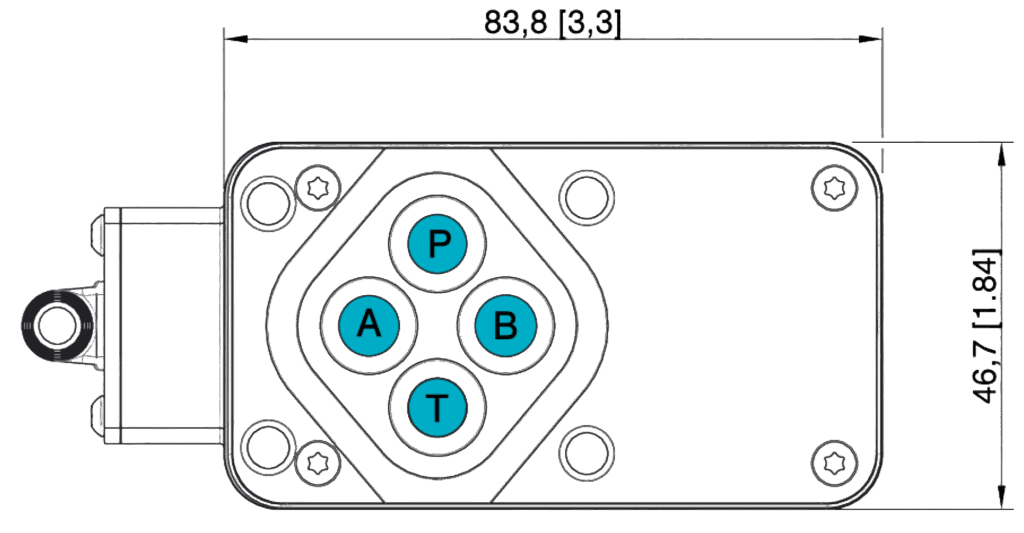

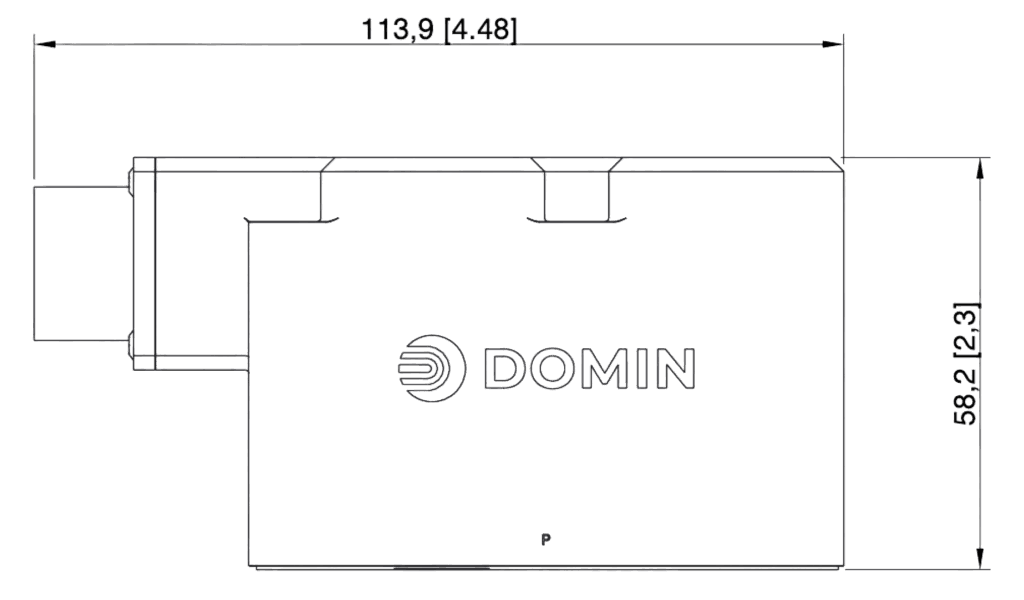

    Unit Dimensions

    Nominal dimensions are displayed in mm. Bracketed dimensions are in inches. Not to scale.

    Mounting Surface Pattern

    Dia Ø
    mm

    X Position
    mm

    Y Position
    mm

    P

    20

    50

    14.3

    A

    20

    34.1

    55.6

    B

    20

    65.9

    55.6

    T

    20

    18.3

    14.3

    L

    6.3

    0

    34.9

    X

    6.3

    76.6

    15.9

    Y

    6.3

    88.1

    57.2

    F1

    M10

    0

    0

    F2

    M10

    101.6

    0

    F3

    M10

    101.6

    69.9

    F4

    M10

    0

    69.9

    F5

    M6

    34.1

    -1.6

    F6

    M6

    50

    71.5

    * Valves includes seal grooves for X and Y ports for installation in existing systems X and Y connections are NOT required for valve operation.

    Bolts (F1, F2, F3, F4)

    Type: M10 x 60 DIN ISO 912-12.9
    Req.Torque: 65 Nm (47.95 ft-lbf)

    Bolts (F5, F6)

    Type: M6 x 60 DIN ISO 912-12.9
    Req.Torque: 13 Nm (9.59 ft-lbf)

    O-Rings (P, A, B, T)

    Type: 21.89 x Ø 2.62 (ISO 3601)
    Material: NBR or Viton, 90 Shore A

    O-Rings (L, X, Y)

    Type: 10.32 x Ø 1.78 (ISO 3601)
    Material: NBR or Viton, 90 Shore A

    Standards Reference

    EMC Regulations: Immunity: EN 61000-6-2, Emission: EN61000-6-3
    Performance Tests: ISO 10770-1
    Pressure Rating: ISO 10771
    Hydraulics Interface: ISO 4401-07-07*

    * Ports over-sized to Ø 20 mm.

    Ordering Code

    S12 Pro 1 2 3 4 5 6 7 8 9

    Any value in range 250 to 660*

    Rate flow in l/min for 35 bar ∆P per control edge

    R – Suffix for reversal of A and B port e.g. 200R

    * Flow rating set in valve software – dynamic performance measured set at 250 l/min flow

    A

    Axis cut (1% overlap linearized)

    O

    3% Overlap (linearized to 50% gain over center)

    D

    10% Overlap (with flow dead band)

    X

    For other options please enquire

    A

    ± 10 V

    B

    ± 20 mA

    C

    4 to 20 mA

    X

    For other options please enquire

    For differing input and output signals, use two letters,
    e.g. AC denotes ± 10V input and 4 to 20 mA output

    C

    Center

    X

    For other options please enquire

    E

    6 pin + PE circular connector

    X

    For other options please enquire

    Y

    Enable mode on

    N

    No enable functionality

    R

    Recommended – any hydraulic oil in accordance with DIN 51524.

    X

    For other options please enquire

    N

    Nitrile

    V

    Viton

    X

    For other options please enquire

    Assigned individually to any with customized options upon enquiry

    Variants on Request

    Domin is proud of their ability to offer tailored solutions that meet customers’ specific needs. If you require a non-standard configuration, or a bespoke modification, we are confident we can provide you with the best solution. Talk to us here and one of our team will respond as soon as possible.

    Domin is a supplier and servo valve manufacturer for various applications including blow/injection molding, wood/timber machines, simulation, gas, steam, & hydro turbines, hydraulic presses, and vibration equipment.

    Related Products

    10,000 PSI Valves

    Hydraulic 10,000 psi valves including Manual Valves, Directional Control Valves, and Relief Valves. These valves are all rated up to 10,000 psi (700 bar), though they can handle pressures much lower.

    Home / Products / 10,000 PSI Valves

    BROWSE BY CATEGORY

    Call Today

    +1.877.ICFLUID

    Brochures & Catalogs

    Download Now

    10,000 PSI Valves

    Hydraulic 10,000 psi valves including Manual Valves, Directional Control Valves, and Relief Valves. These valves are all rated up to 10,000 psi (700 bar), though they can handle pressures much lower.

    Home / Products / Hydraulic Servo Valves / Hydraulic Servo Valves – S6 Pro
    Request a Price Quote
    • Domin Overview
    • S6 Pro Data Sheet
    • S6 Pro STP File

    Hydraulic Servo Valves – S6 Pro

    The Domin S6 Pro direct drive servo valve (DDV) has been designed to achieve the best characteristics from two competing valve technologies: fluid amplified EHSVs and DDVs. The S6 Pro has the size, mass, and dynamic capabilities of the most compact EHSV, and the low quiescent leakage and reliability of the best DDV.

    For applications requiring the results of the S6 Pro X, the S6 Pro model can be upgraded with a mounting plate adapter to achieve the same functionality.

    Discover Ultimate Power Density

    Experience optimal performance without compromise. Whether in test simulation or industrial manufacturing, the S6 Pro ensures seamless operations and maximum productivity, thanks to its superior design and exceptional power density.

    With the Domin S6 Pro, you get the best of both worlds: the size, mass, dynamic capabilities, and industry-leading power density of the most advanced two-stage valves, paired with low quiescent leakage and unwavering reliability. Experience effortless efficiency, precision and power with the Domin S6 Pro series.

    Available on NG06 port pattern as standard.

    Popular Upgrade Models:

    • Atos DLHZO: 65% faster step response
    • Bosch Rexroth 4WRPEH 6: 50% higher flow
    • Parker D1FP: 89% lighter
    • Moog D633
    • Woodward 27B50F

    Key Stats:

    • Hysteresis: <0.2%
    • Leakage: <0.3gpm (<1.1 l/min)
    • Mass: 1.36 lbs (0.62 kg)
    • Frequency Response: >250 Hz
    • Rated Flow: 5-16gpm (18-60 l/min)
    • Response Time: <3.5 ms

    Key Features:

    • Onboard electronics with spool position feedback
    • Rated flow of up to 16gpm (60 l/min) (at 1,015 psi (70 bar))
    • Mounting interface of ISO 4401-03-02
    • Bandwidth > 190 Hz (-3 dB, up to ± 25% FS)
    • Low power consumption of less than 5 W
    • Chip shear capability of greater than 89lbf (400 N)
    • Low weight of less than 1.5lbs

    Standard Modification Options:

    • Choice of rated flow up to 16gpm (60 l/min)
    • Multiple voltage or current control options
    • Various seal materials available
    • Non-standard configurations available

    Technical Data:

    DesignDirect Drive Servo Valve
    ActuationRotary-Linear
    SizeNG06
    Mounting InterfaceISO 4401-03-02
    Ambient TemperatureºC (ºF)-20 to +60 (-4 to +140)
    Masskg (lb)0.62 (1.36)
    Vibration Resistance, All Axesg30
    Shock Resistance, All Axesg50
    Max. Operating Pressure (P, A, B)Bar (psi)350 (5,000)
    Max. Operating Pressure (T)Bar (psi)250 (3,600)
    FluidHydraulic Oil DIN 51524-535
    Fluid TemperatureºC (ºF)-20 to +80 (-5 to +175)
    ViscositycSt5 to 500
    Rated Flowl/min (US gal / min)10 to 63 (2.6 to 16.6)
    Flow Maximuml/min (US gal / min)140 (36.9)
    Leakage at 100 barl/min (US gal / min)<1.1 (0.3)
    FiltrationISO 4406 (1999) 18/16/13
    Response Time at 100% Step Inputms<3.5
    Frequency Response (-3dB gain, ±25% signal)Hz>250
    Frequency Response (-90deg phase, ±25% signal)Hz>120
    Hysteresis%<0.2
    Threshold%<0.1
    Null Shift%<1

    View performance graphs for the S6 Pro Domin Servo Valve below including Step Response, Flow vs Command, Frequency Response, and Pressure Gain:

  • Step Response
  • Flow vs Command
  • Frequency Response
  • Pressure Gain

    • Ratings of the valve electronics vary based on selected command input.

    Absolute Maximum Ratings*

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    0

    –

    30

    Differential Input Signal

    V

    -10.5

    –

    10.5

    Input Signal Common Mode Offset

    V

    -24

    –

    24

    Output Signal Current

    mA

    -50

    –

    50

    Normal Operating Conditions

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    22

    24

    30

    Absolute maximum current draw **

    A

    –

    –

    4.5

    Differential Input Signals

    V

    -10

    –

    10

    Input Impedance

    KΩ

    200

    –

    –

    Output Signal

    V

    -10

    –

    10

    Output Impedance

    Ω

    –

    150

    –

    Output Load Impedance

    KΩ

    1

    –

    –

    Absolute Maximum Ratings*

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    0

    –

    30

    Differential Input Signal

    mA

    -25

    –

    25

    Input Signal Common Mode Offset

    V

    -24

    –

    24

    Output Signal Current

    mA

    -50

    –

    50

    Normal Operating Conditions

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    22

    24

    30

    Peak Current Consumption**

    A

    –

    –

    4.5

    Differential Input Signals

    mA

    20

    –

    20

    Input Impedance***

    Ω

    –

    392

    –

    Output Load Impedance****

    Ω

    –

    –

    650

    Absolute Maximum Ratings*

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    0

    –

    30

    Voltage Mode Differential Input Signal

    mA

    -25

    –

    25

    Input Signal Common Mode Offset

    V

    -24

    –

    24

    Output Signal Current

    mA

    -50

    –

    50

    Normal Operating Conditions

    Min.

    Typ.

    Max.

    Supply Voltage

    V

    22

    24

    30

    Peak Current Consumption**

    A

    –

    –

    4.5

    Differential Input Signals

    mA

    4

    –

    20

    Differential Input Signals for Drive Off*****

    mA

    -20

    –

    2

    Input Impedance***

    Ω

    –

    392

    –

    Output Load Impedance****

    Ω

    –

    –

    650

    Valves can be provided with an enable function. This allows the valve to be enabled or disabled by varying the voltage into the enable pin. Note that valves with code C command type can also be enabled or disabled using the command signal; see the corresponding table for further details.

    Normal Operating Conditions

    Min.

    Typ.

    Max.

    Voltage for Drive Enable

    V

    9

    –

    28

    Voltage for Drive Disable

    V

    0

    –

    5

    Input Impedance

    Ω

    –

    15

    –

    * Conditions outside of the absolute maximum ratings may cause permanent damage to the valve. Operation of the product outside of the nominal operating conditions is not guaranteed and may affect product reliability.

    ** The valve supply must be protected with a 5 AT fuse or equivalent overcurrent protection device.

    *** Valves with a current command signal use a 0.1% tolerance shunt resistor to measure demand current.

    **** The value of the shunt resistor to measure output current should not exceed stated maximum value.

    ***** A current in this range will disable the motor drive until a current outside this range is received at the command input.

    Type: Case Mounted
    Termination: Connector according to EN 175201-804/MIL 5015 equivalent, shell size 14
    Number of Contacts: 7

    Pin

    Function

    Desc.

    A

    Supply +

    +24 V

    B

    Supply 0 V

    0 V

    C

    Output –
    Enable Input

    Output 0 V Reference
    Drive Enable Input*

    D

    Input +

    Differential Input, +

    E

    Input –

    Differential Input, –

    F

    Output +

    Output Signal

    G

    Earth

    –

    * When the enable function is selected, the function of pin C is the enable input. This replaces the standard pin function.

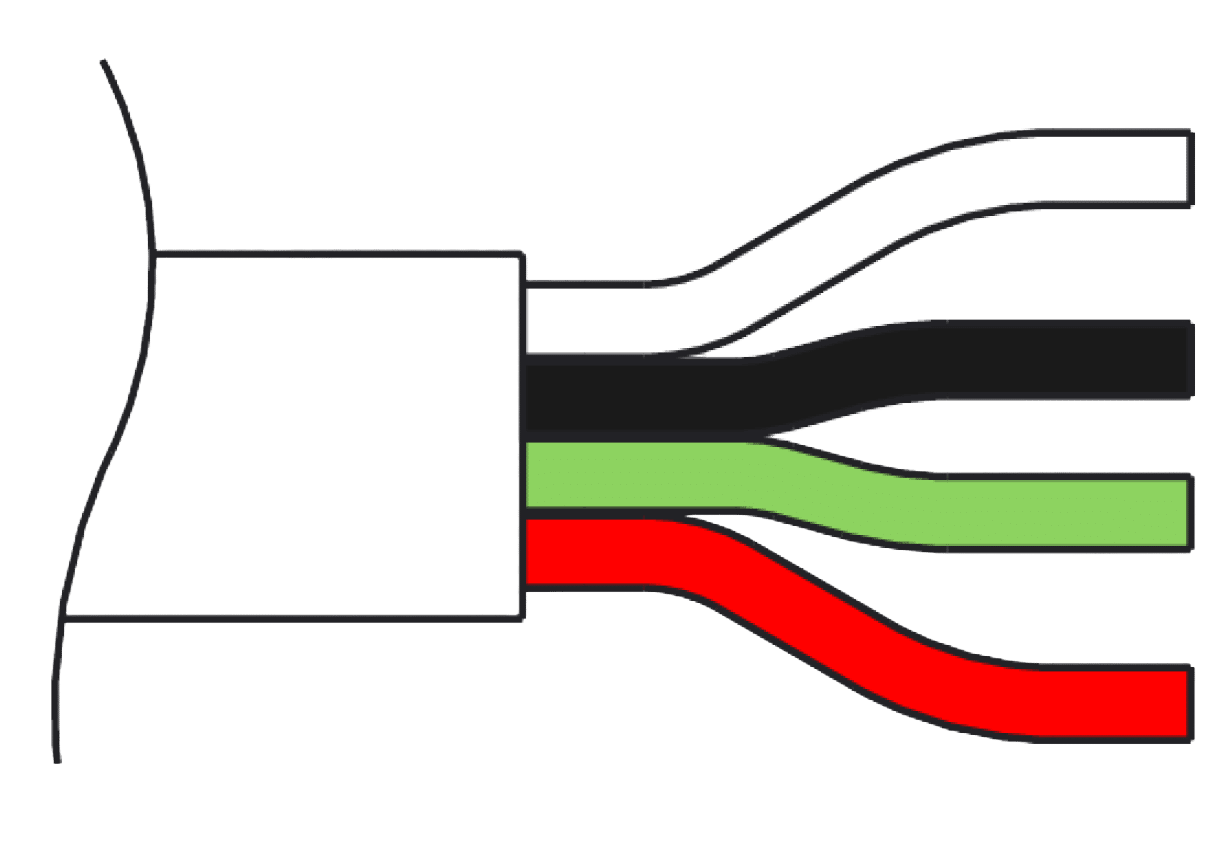

    Type: Case Mounted
    Termination: Connector according to EN 175201-804/MIL 5015 equivalent, shell size 14
    Number of Contacts: 4

    Pin

    Function

    Desc.

    A

    Supply +

    +24 V

    B

    Input +

    Differential Input, +

    C

    Input –

    Differential Input, –

    D

    Supply 0 V

    0 V

    Unit Dimensions – Connector Code G and B4

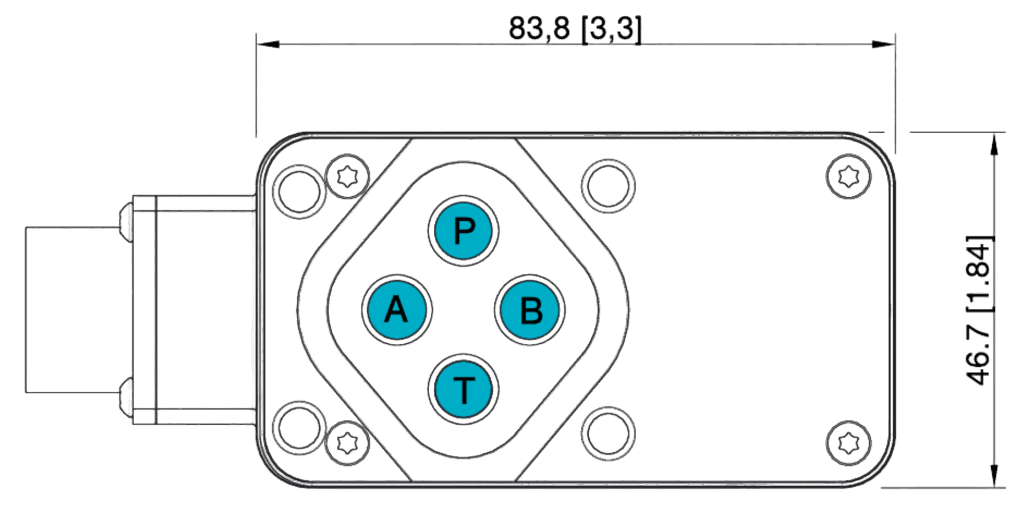

    Unit Dimensions – Connector Code E and E4

    Nominal dimensions are displayed in mm. Bracketed dimensions are in inches. Not to scale. Note X and Y directions.

    Mounting Surface Pattern Dimensions

    Dia Ø
    mm

    X Position
    mm

    Y Position
    mm

    P

    7.5

    21.5

    25.9

    A

    7.5

    12.7

    15.5

    B

    7.5

    30.2

    15.5

    T

    7.5

    21.5

    5.1

    F1

    M5

    0

    0

    F2

    M5

    40.5

    -0.75

    F3

    M5

    40.5

    31.75

    F4

    M5

    0

    31

    Bolts (F1, F2, F3, F4)

    Type: M5 x 55 DIN EN ISO 4762-10.9
    Required Torque: 7.5 Nm (5.5 ft-lbf)

    O-Rings (P, A, B, T)

    Type: 9.25 x Ø 1.78 (ISO 3601-1-008)
    Material: NBR, EPDM or Viton, 70 Shore A
    Hardness: 70 Shore A

    Not to scale.

    Standards Reference

    EMC Regulations: EN 61000-6-2 / EN550011:1998+A1
    Performance Tests: ISO 10770-1
    Pressure Rating: ISO 10771
    Hydraulics Interface: ISO 4401-03-02-0-05

    Ordering Code

    S6 Pro 1 2 3 4 5 6 7 8 9

    Any value in range 5 to 63*

    Rate flow in l/min for 35 bar ∆P per control edge

    R – Suffix for reversal of A and B port e.g. 60R

    * Flow rating set in valve software – dynamic performance measured set at 60lpm flow.

    A

    Axis cut (1% overlap linearized)

    O

    3% Overlap (linearized to 50% gain over center)

    D

    10% Overlap (with flow dead band)

    X

    For other options please enquire

    A

    ± 10 V

    B

    ± 20 mA

    C

    4 to 20 mA

    D

    ± 5 V

    E

    ± 5 mA

    F

    ± 10 mA

    G

    ± 50 mA

    H

    ± 40 mA

    I

    ± 25 mA

    X

    For other options please enquire

    For differing input and output signals, use two letters,
    e.g. AC denotes ± 10V input and 4 to 20 mA output

    C

    Center

    X

    For other options please enquire

    E

    6 pin + PE circular connector*

    E4

    4 pin circular connector*

    B4

    4 contact, unterminated flying lead

    G

    G4-20P Rack and Panel connector

    X

    For other options please enquire

    * EN 175201-804/MIL 5015 equivalent connector, shell size 14

    Y

    Enable mode on (Only available with connector option E)

    N

    No enable functionality

    R

    Recommended – any hydraulic oil in accordance with DIN 51524, filtered in accordance with ISO4406 18/16/13. Compatibility with water-free synthetic fluids available on enquiry.

    X

    For other options please enquire

    F

    FFKM (Shore 75)

    N

    Nitrile (Shore 90)

    V

    Viton (Shore 85)

    X

    For other options please enquire

    Assigned individually to any with customized options upon enquiry

    Variants on Request

    Domin is proud of their ability to offer tailored solutions that meet customers’ specific needs. If you require a non-standard configuration, or a bespoke modification, we are confident we can provide you with the best solution. Talk to us here and one of our team will respond as soon as possible.

    Domin is a supplier and servo valve manufacturer for various applications including die casting, injection molding, wood/timber machines, vibration equipment, metal processing, and simulation.

    Related Products
